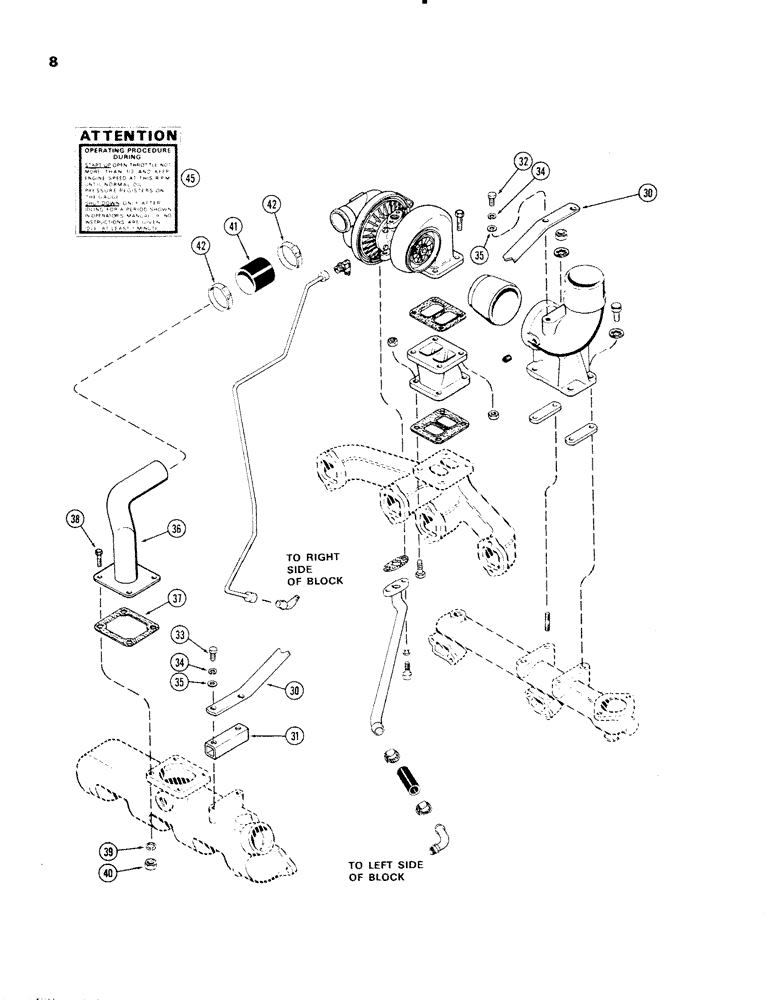

Запчасти Case IH 336DT (008) - TURBOCHARGER, ENGINE LESS FUEL DEVICE, 336DT TURBOCHARGED ENGINES

30

A61942

BRACE

- exhaust elbow

1шт.

31

A67057

SPACER

- brace

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

33

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

36

A77242

ELBOW

- turbocharger air intake

1шт.

37

A58910

GASKET

- elbow

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

41

A58894

HOSE

- air intake

1шт.

42

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

45

321-1981

DECAL

- turbocharger procedure

1шт.
