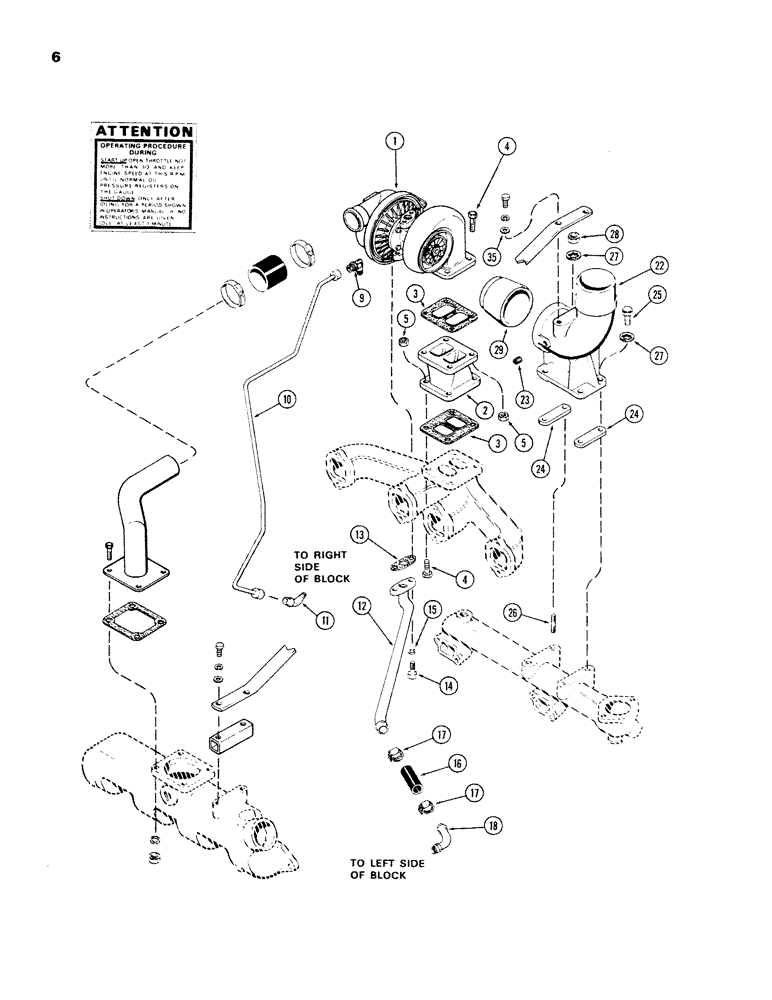

Запчасти Case IH 336DT (006) - TURBOCHARGER, ENGINE LESS FUEL DEVICE, 336DT TURBOCHARGED ENGINES

1

A42166

REMAN-TURBOCHARGER

TURBOCHARGER - remanufactured

1шт.

1

A42165

CORE

TURBOCHARGER - used (See Note)

1шт.

2

A61002

ADAPTER

BASE -, Serial Range: turbocharger-manifold

1шт.

3

A58899

GASKET,0.45mm Thk

- base

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

8шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex., seez pruf

8шт.

9

222-4047

ELBOW

- 3/8" tube x 1/4" P.T., 90 degrees

1шт.

10

A62477

TUBE

- oil supply

1шт.

11

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- 3/8" tube x 3/8" P.T., 45 degrees

1шт.

12

A59228

TUBE

- oil drain

1шт.

13

A58892

GASKET,1.59mm Thk

- tube

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

A58893

HOSE

- drain tube

1шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

18

A59234

FITTING

- drain, Serial Range: tube-block

1шт.

22

A61941

ELBOW

- turbocharger exhaust

1шт.

23

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" P.T. sq. hd.

1шт.

24

A59237

SPACER

- elbow to water manifold

2шт.

25

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

3шт.

26

A58689

STUD

- 3/8" N.C. x 1-7/8"

1шт.

27

192-30

WASHER - Shakeproof, 3/8" int.

4шт.

28

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. Seez pruf

1шт.

29

A65554

TUBE

CONNECTOR - exhaust elbow

1шт.
