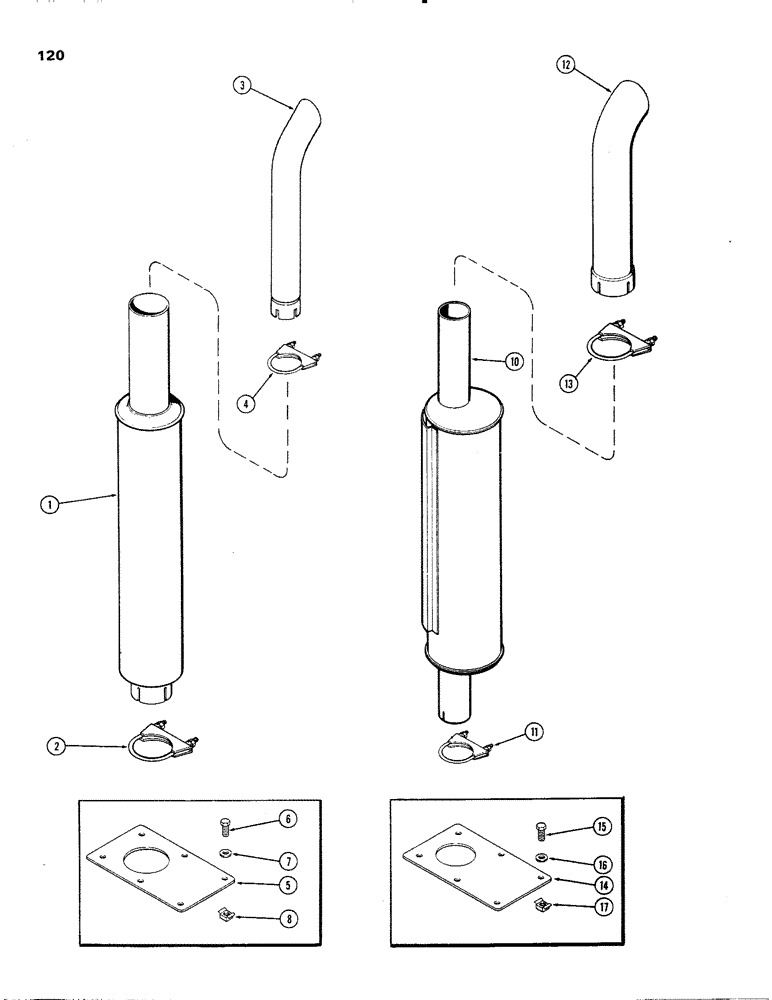

Запчасти Case IH 336DT (120) - EXHAUST SYSTEM, MUFFLER WITH ELBOW, WITH 3-1/2 INCH INLET, 336DT TURBOCHARGED ENIGNES, D

1

A64990

MUFFLER

- exhaust

1шт.

2

A17851

CLAMP

- muffler

1шт.

3

A62850

PIPE

ELBOW - exhaust, 90 deg.

1шт.

4

A62878

CLAMP

- elbow

1шт.

5

A65906

PLATE - hood exhaust hole cover

1шт.

6

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

7

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.

8

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman, Speed grip J, Ret, 5/16"-18

4шт.

10

A59765

MUFFLER

- exhaust

1шт.

11

A27115

CLAMP

- muffler

1шт.

12

A62471

EXTENSION

ELBOW - exhaust, 90 deg.

1шт.

13

A27115

CLAMP

- muffler

1шт.

14

A65905

PLATE - hood exhaust hole cover

1шт.

15

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

16

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

6шт.

17

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman, Speed grip J, Ret, 5/16"-18

6шт.
