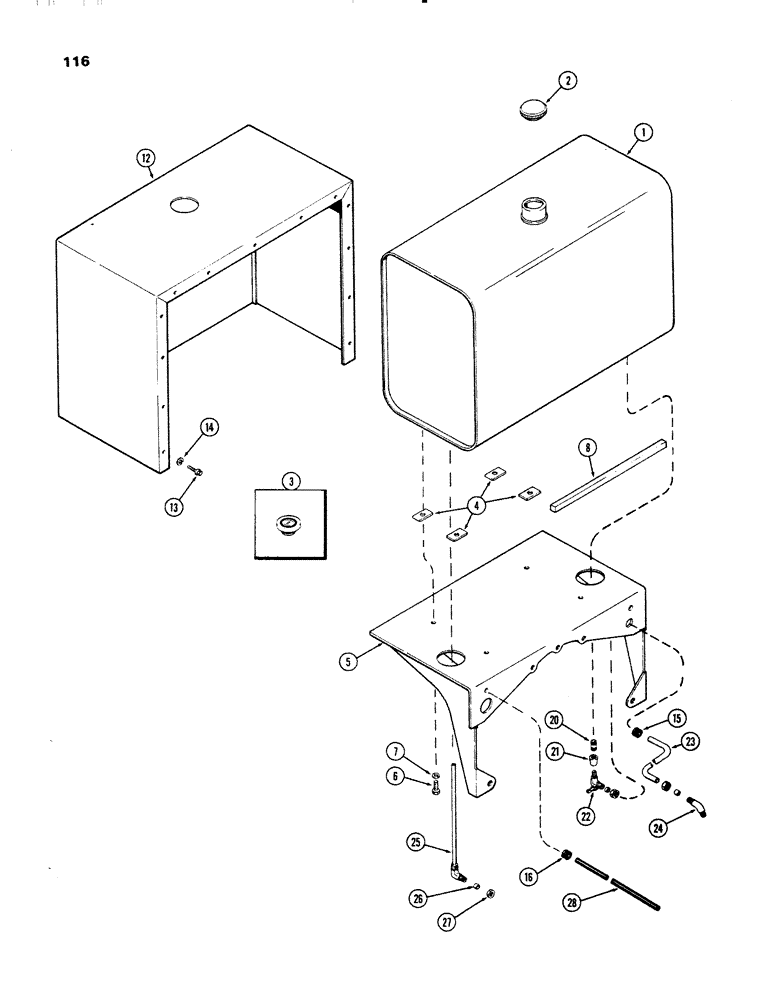

Запчасти Case IH 336DT (116) - FUEL TANK, B

1

A64685

TANK - fuel, 35 gal.

1шт.

2

A32119

CAP

- fuel tank

1шт.

3

A32120

CAP

- fuel tank, w/lock

1шт.

4

A65927

GASKET - fuel tank mounting

4шт.

5

A65935

SUPPORT - fuel tank

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

A66760

WASHER - fuel tank support

3шт.

8

A64965

SEAL

PAD - foam mounting (use adhesive 345-22)

1шт.

12

A65933

COVER - fuel tank

1шт.

13

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

13шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

13шт.

15

49566

GROMMET

- rubber (3/8" I.D.)

1шт.

16

S72150

GROMMET - rubber (1/4" I.D.)

1шт.

S69667

GROMMET,5/16" ID x 3/4" Groove Dia

- rubber (3/4" hole)

1шт.

A59722

GROMMET

- rubber (1" hole)

1шт.

20

217-4

ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male

BUSHING - 3/8" tube, 3/8" P. T.

1шт.

21

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING - reducing, 3/8 to 1/4"

1шт.

22

217-278

FITTING

VALVE - 3/8" tube, 1/4" P. T.

1шт.

23

A66119

TUBE - 3/8" O. D. Nylon, 38" long

1шт.

24

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW - 3/8" tube x 1/4" P. T., 45 deg. (In Injection pump)

1шт.

25

A65220

TUBE ASSY. - fuel tank return port

1шт.

26

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

27

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

28

A66118

TUBE

- 1/4" O. D. Nylon, 28" long

1шт.

205-47

PLUG - 1" dia. hole 1"

1шт.

205-64

PLUG - 1-3/4" dia. hole 1 3/4"

1шт.
