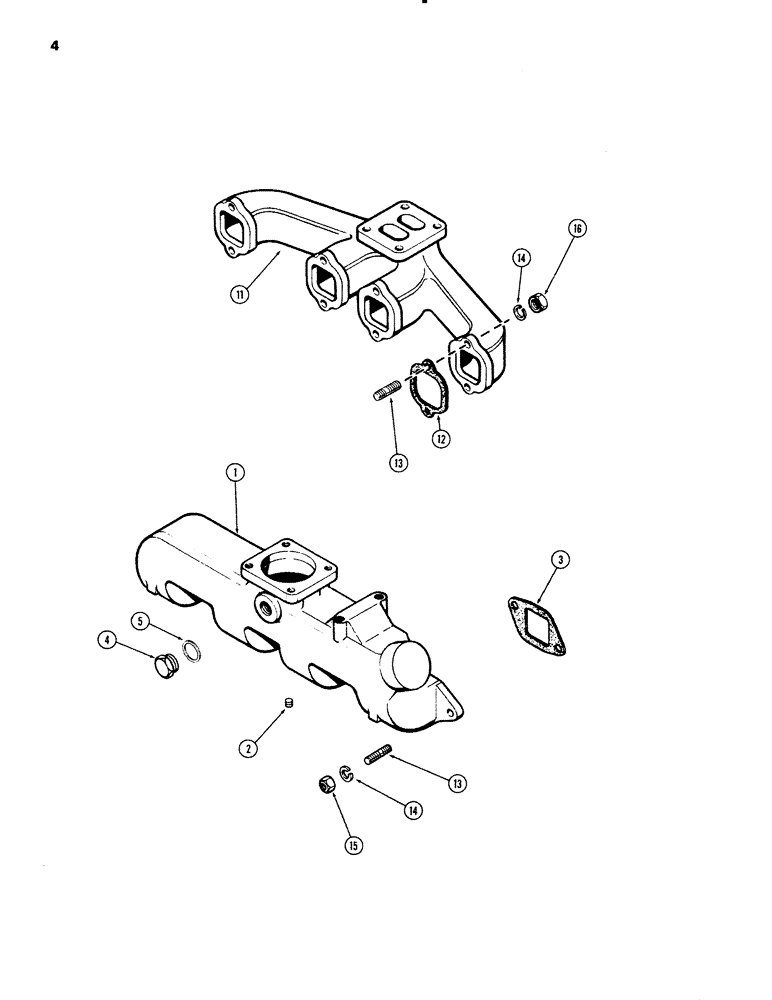

Запчасти Case IH 336DT (004) - MANIFOLDS, ENGINE LESS FUEL DEVICE, 336DT TURBOCHARGED ENGINES

1

A140120

MANIFOLD

ASSY. - intake

1шт.

2

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

1шт.

3

A58662

MANIFOLD GASKET

- intake manifold

4шт.

4

A20917

PLUG

- heater hole

1шт.

5

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

11

A61001

MANIFOLD

- exhaust

1шт.

12

A58895

GASKET

- exhaust manifold

4шт.

13

A59077

STUD

- 3/8" N.C. x 1-3/4"

16шт.

14

92-6

LOCK WASHER,3/8"

16шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Intake manifold)

8шт.

16

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. Seez pruf (exhaust manifold)

8шт.
