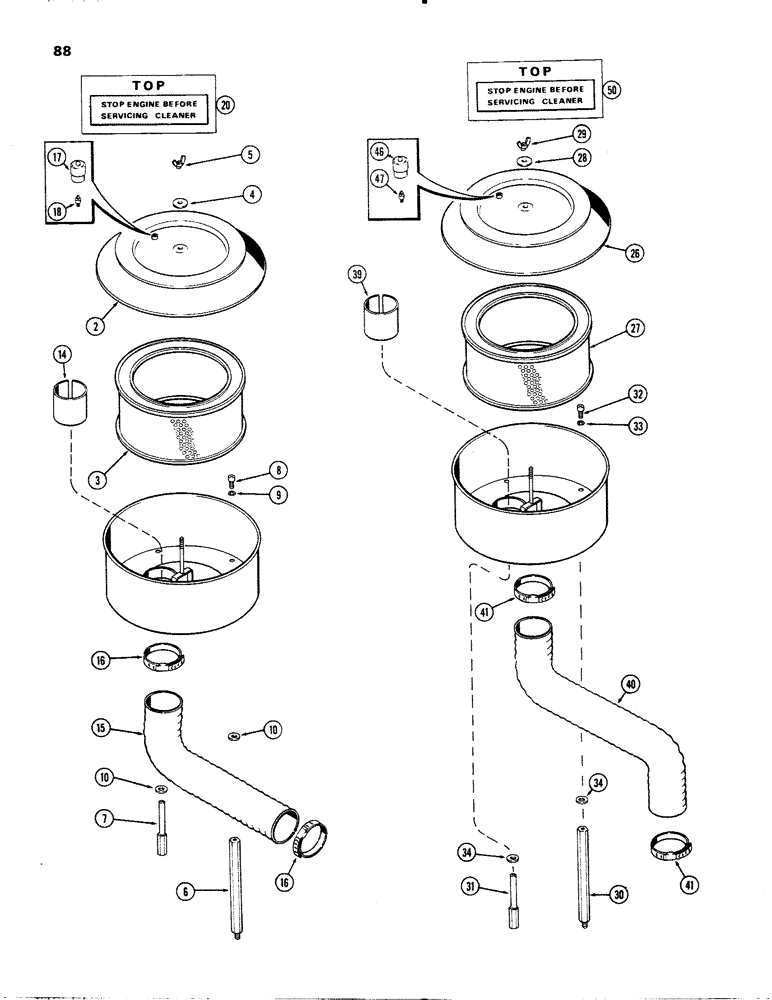

Запчасти Case IH 336DT (088) - AIR CLEANER, DRY I, 336DT TURBOCHARGED ENGINES, B
№
Артикул
Название
Примечание
Количество
A65925
CLEANER ASSY. - air
1шт.
2
A44537
COVER - air cleaner
1шт.
3
A44538
ELEMENT
- air cleaner
1шт.
4
L10610
WASHER - wingnut
1шт.
5
129-505
NUT, WING
WINGNUT - 1/4" N. C.
1шт.
6
A65921
POST - air cleaner mounting
1шт.
7
A65920
POST - air cleaner mounting
2шт.
8
165-144
BOLT,5/16" - 18 x 3/4"
SCREW - 5/16 x 3/4" N. C. sckt. hd. cap
3шт.
9
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
3шт.
10
95-5
WASHER,3/8" x 7/8" x .083"
- 3/8 x 7/8 x 5/64"
1шт.
14
A66755
STAND PIPE - air intake
1шт.
15
A66055
DUCTING - air, Serial Range: cleaner-turbocharger
1шт.
16
214-264
HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm
CLAMP - hose, 2-13/16 to 3-3/4"
2шт.
17
A59568
INDICATOR
- air restriction
1шт.
18
D36264
FITTING
COUPLING - 1/8" p. t.
1шт.
353-401
PLUG,Dome, .312" hole, Nylon
- Heyco (black nylon)(air cleaner)
1шт.
20
321-1568
DECAL
- air cleaner warning
1шт.
A65925
CLEANER ASSY. - air
1шт.
26
A44537
COVER - air cleaner
1шт.
27
A44538
ELEMENT
- air cleaner
1шт.
28
L10610
WASHER - wingnut
1шт.
29
129-505
NUT, WING
WINGNUT - 1/4" N. C.
1шт.
30
A65921
POST - air cleaner mounting
1шт.
31
A65920
POST - air cleaner mounting
2шт.
32
165-144
BOLT,5/16" - 18 x 3/4"
SCREW - 5/16 x 3/4" N. C. sckt. hd. cap
3шт.
33
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
3шт.
34
95-5
WASHER,3/8" x 7/8" x .083"
- 3/8 x 7/8 x 5/64"
1шт.
39
A66755
STAND PIPE - air intake
1шт.
40
A65922
DUCT
ING - air, Serial Range: cleaner-manifold
1шт.
41
214-264
HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm
CLAMP - hose, 2-13/16 to 3-3/4"
2шт.
46
A59568
INDICATOR
- air restrication
1шт.
47
D36264
FITTING
COUPLING - 1/8" P. T.
1шт.
353-401
PLUG,Dome, .312" hole, Nylon
- Heyco (black nylon)(air cleaner)
1шт.
50
321-1568
DECAL
- air cleaner mounting
1шт.
Выбрано товаров: 34
