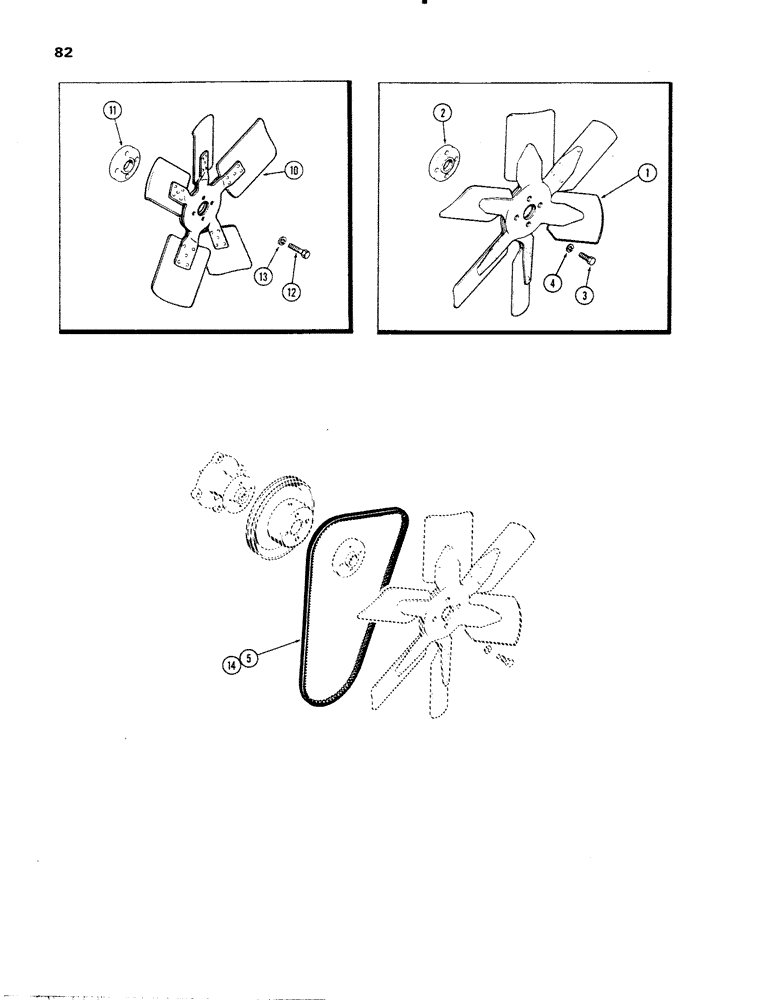

Запчасти Case IH 336DT (082) - FANS, PULLER, D

1

A65700

FAN

- 19-1/2" puller (6 Blade)

1шт.

2

A61268

BUSHING

SPACER - fan, 1" wide

1шт.

3

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

A64206

V-BELT,0.69" W x 57.00" L

Fan Drive 0.69" W x 57.00" L

1шт.

10

A64205

FAN

- 19-1/2" pusher (5 Blade)

1шт.

11

61268

SPACER - fan, 1" wide

1шт.

12

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

A64206

V-BELT,0.69" W x 57.00" L

Fan, Drive 0.69" W x 57.00" L

1шт.

A64206

V-BELT,0.69" W x 57.00" L

Fan 0.69" W x 57.00" L

1шт.

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
