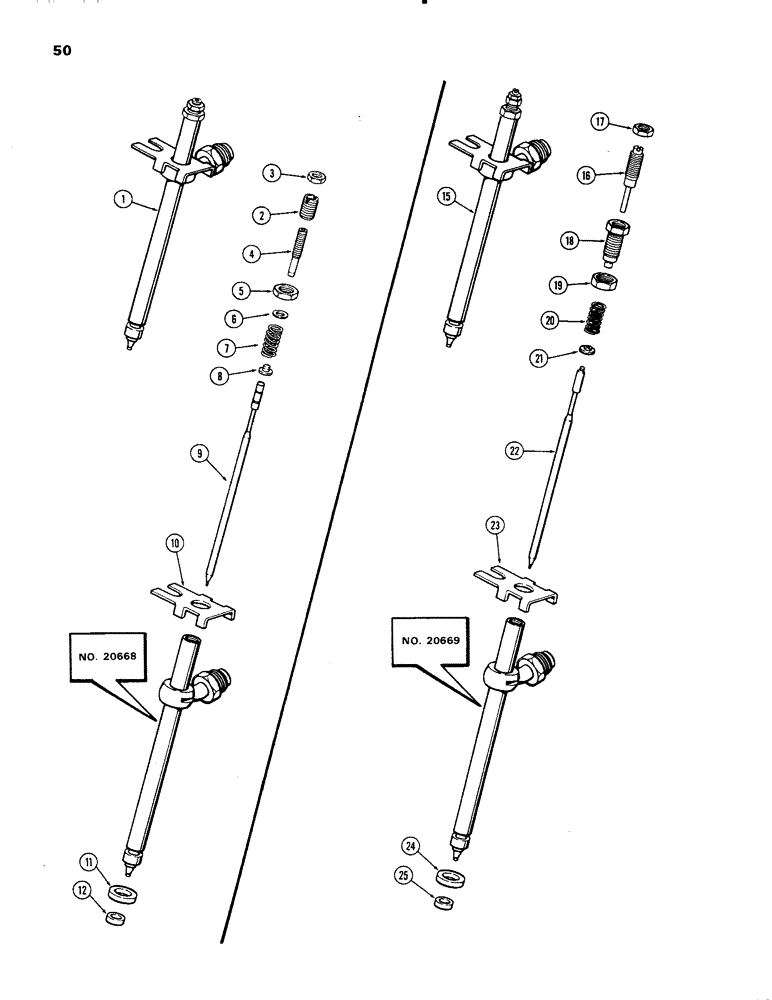

Запчасти Case IH 336DT (050) - FUEL INJ. NOZZLES, ENG. LESS FUEL DEVICE, 336DT TURBOCHARGED ENGINE, 336D NATURALLY ASPIRATED ENGINE

1

A138322

NOZZLE CAP

NOZZLE ASSY. - injection (Suppler's #20668 stamped on body, coded red)(See note)

4шт.

A138322R

REMAN-INJECT NOZZLE

336DT

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

3

A43602

NUT

- #10-56 hex. lock, lift adjusting

1шт.

4

A45292

SCREW

- pressure adjusting

1шт.

5

A42424

LOCK NUT

- 5/16"-48 hex. lock, press. adjusting

1шт.

6

A45291

SHIM

- pressure adjusting

1шт.

7

A45290

SPRING

- pressure adjusting

1шт.

8

A45289

SEAT

- spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A41768

PLATE

- nozzle locating

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

15

A140830

INJECTOR ASSY.

NOZZLE ASSY. - injection (Supplier's #20669 stamped on body, coded yellow & blue)(See note)

4шт.

A140830R

REMAN-INJECT NOZZLE

336DT

4шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

17

A43602

NUT

- #10-56 hex. lock, lift adjusting

1шт.

18

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

19

A42424

LOCK NUT

- 5/16"-48 hex. lock, press. adjusting

1шт.

20

A43733

SPRING

- pressure adjusting

1шт.

21

A44369

SEAT

- spring

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

23

A41768

PLATE

- nozzle locating

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
