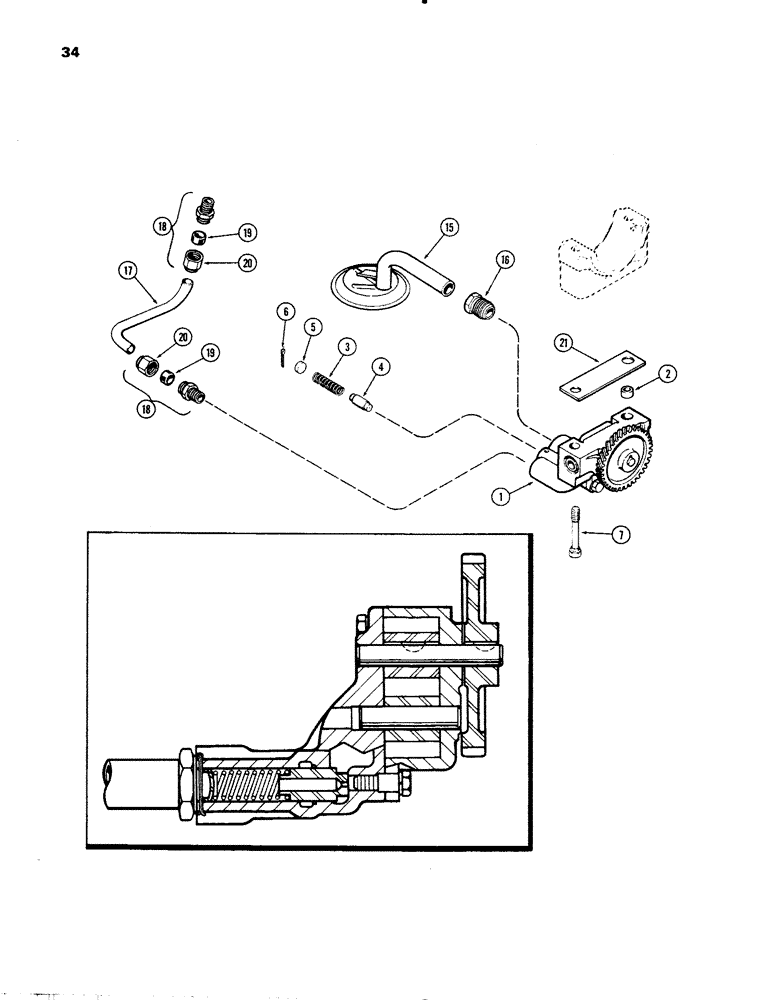

Запчасти Case IH 336DT (034) - FRONT MOUNTED OIL PUMP, ENGINE LESS FUEL DEVICE, 336DT AND 336D DIESEL ENGINES, 56E, 57E

1

A61808

PUMP, ENGINE OIL

PUMP ASSY. - oil

1шт.

2

A58915

SLEEVE

- pump body

1шт.

3

A59111

SPRING

- relief valve

1шт.

4

A34992

PISTON

VALVE - relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- relief valve, 45/64" cup type

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

A58567

STEP BOLT

BOLT - 5/8 x 6-13/16" N.C. spec.

2шт.

15

A139407

SCREEN

TUBE ASSY. - suction, w/screen

1шт.

16

222-510

TUBE NUT,1 1/4"-18

NUT - tube to pump

1шт.

17

A137793

TUBE -, Serial Range: pump-filter

1шт.

18

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTION ASSY. - tube

2шт.

19

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

20

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

21

A58859

SHIM,.005" Thk

Pump to front brg. cap .005" Thk

1шт.
