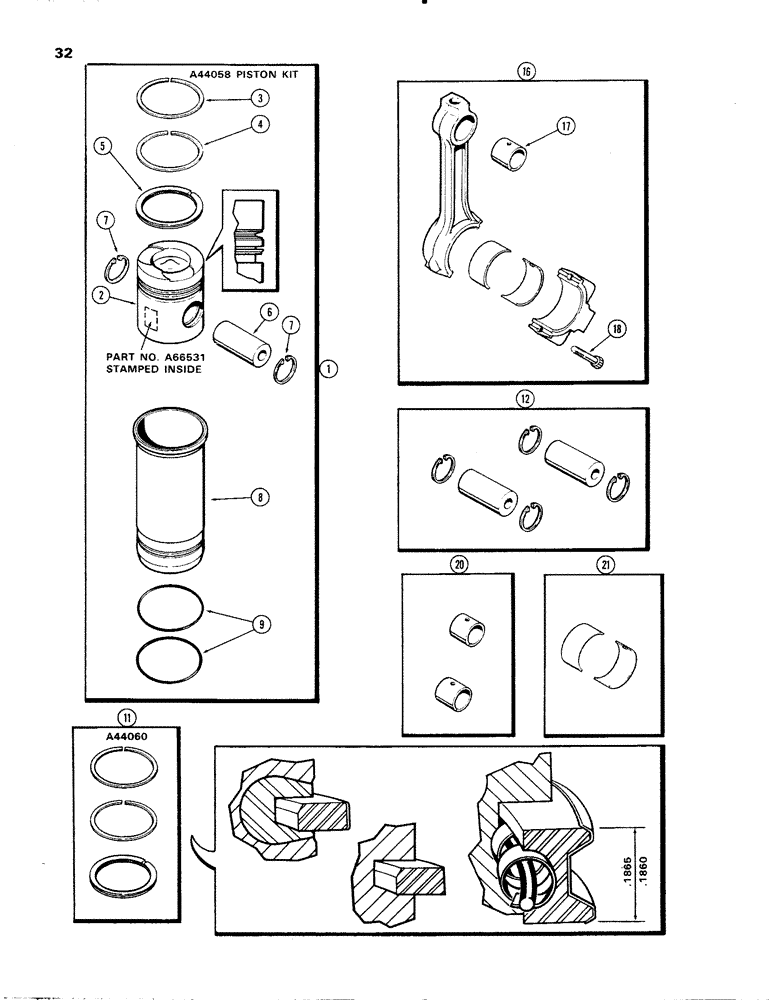

Запчасти Case IH 336DT (032) - PISTON ASSY. & CONNECTING RODS, ENGINE LESS FUEL DEVICE, 336D NATRUALLY ASPIRATED ENGINES, 57C, 57E

1

A44058

PISTON

& SLEEVE KIT - (Set of 2)

2шт.

2

A66531

PISTON

- cylinder, 4-5/8"

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove)(order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove)(order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (3rd groove)(order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (order ref. 12)

2шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

4шт.

8

A58570

SLEEVE

- piston (cylinder liner)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve packing

4шт.

A44061

RING

KIT - re-ring (Set of 4)

1шт.

11

A44060

RING

KIT - re-ring (Set of 1)

4шт.

12

A43095

PIN

KIT - w/retaining rings (Set of 2)

2шт.

16

A62954

ROD, CONNECTING

ROD ASSY. - connecting

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (order ref. 20)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap

2шт.

20

A42491

BUSHING

KIT - piston pin (Set of 2)

2шт.

21

A43173

BEARING LINER

LINER KIT - connecting rod bearing (std.)

4шт.

21

A43174

BEARING LINER

LINER KIT - connecting rod (-.002")

4шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

LINER KIT - connecting rod (-.010")

4шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

LINER KIT - connecting rod (-.020")

4шт.

21

A43177

BEARING LINER

LINER KIT - connecting rod (-.030")

4шт.
