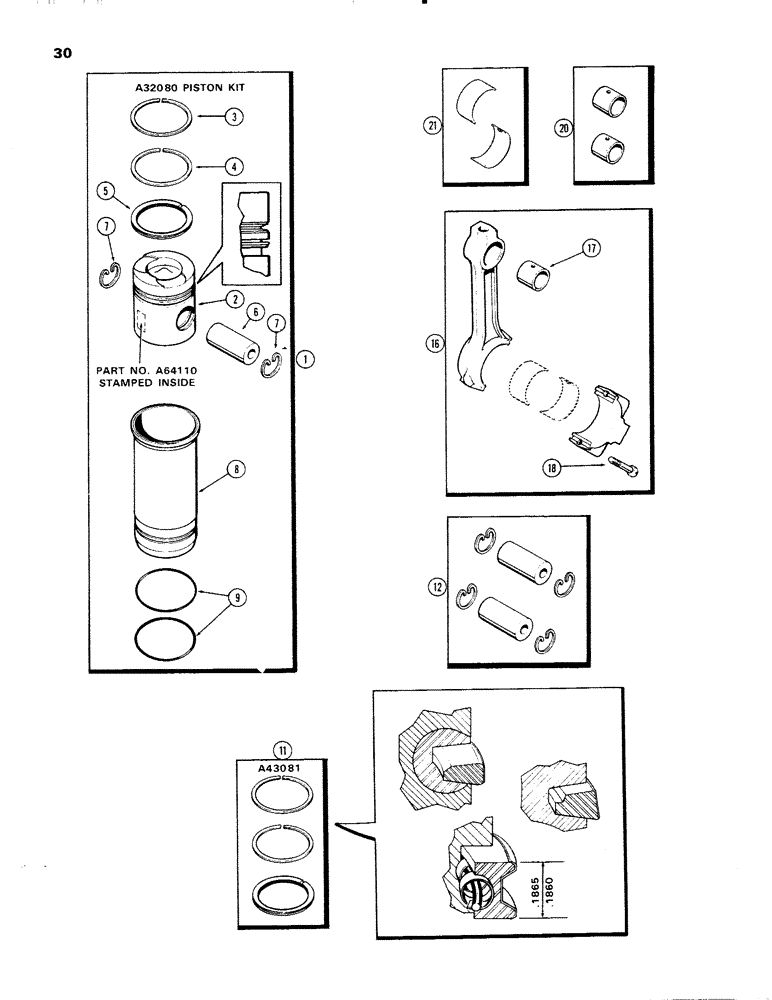

Запчасти Case IH 336DT (030) - PISTON ASSEMBLY AND CONNECTING RODS, ENGINE LESS FUEL DEVICE, 336DT TURBOCHARGED ENGINES

1

A43080

SLEEVE

PISTON & SLEEVE KIT - (Set of 2)

2шт.

2

A64110

PISTON

- cylinder, 4-5/8"

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove)(order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove)(order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Bottom groove)(order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (order ref. 12)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A58570

SLEEVE

- piston (cylinder liner)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve packing

2шт.

A43117

RING

KIT - re-ring (Set of 4)

1шт.

11

A43081

RING

KIT - re-ring (Set of 1)

4шт.

12

A41750

PIN

KIT - w/retaining rings (Set of 2)

2шт.

16

A65032

ROD

ASSY. - connecting

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (order ref. 20)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap

2шт.

20

A41756

BUSHING

KIT - piston pin (Set of 2)

2шт.

21

A41758

BEARING LINER

INSERT KIT - connecting rod bearing (std.)

4шт.

21

A41899

BEARING LINER

INSERT KIT - connecting rod (-.002")

4шт.

21

A41900

BEARING LINER

INSERT KIT - connecting rod (-.010")

4шт.

21

A41901

BEARING LINER

INSERT KIT - connecting rod (-.020")

4шт.

21

A41902

BEARING LINER

INSERT KIT - connecting rod (-.030")

4шт.
