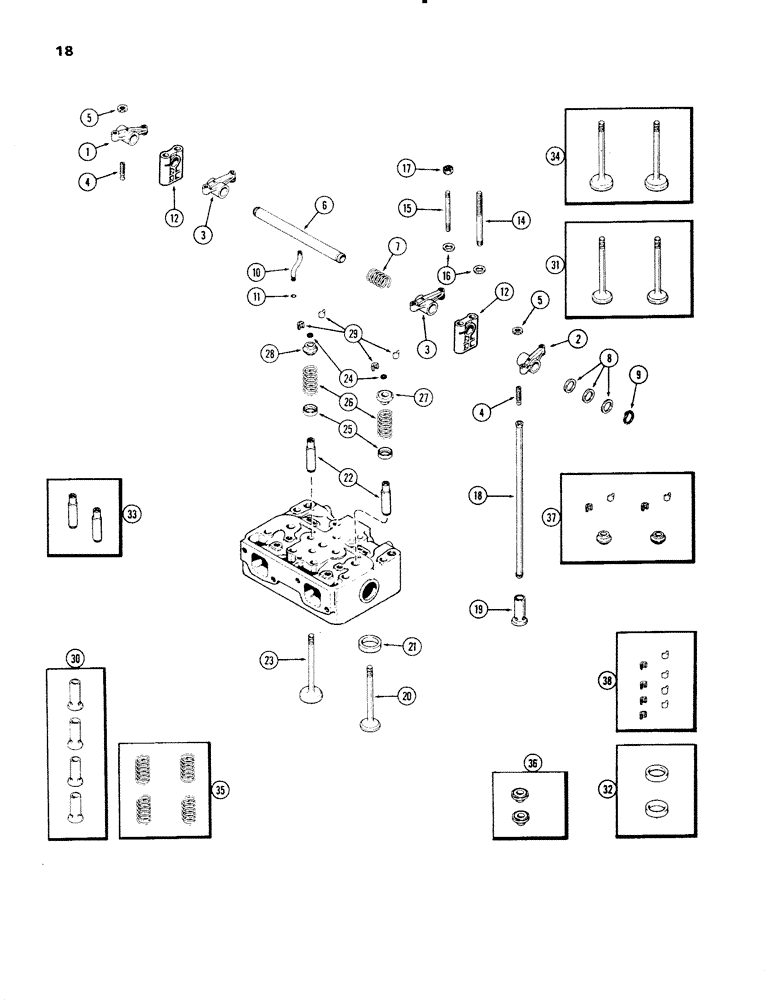

Запчасти Case IH 336D (018) - VALVE MECHANISM, ENGINE LESS FUEL DEVICE, 336D NATURALLY ASPIRATED ENGINES

1

A58655

ARM

- rocker, exhaust valve (1st & 3rd cylinders)

2шт.

2

A58656

ARM

- rocker, exhaust valve (2nd & 4th cylinders)

2шт.

3

A58654

ARM

- rocker, intake valve

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

8шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex., jam

8шт.

6

A57532

SHAFT

ASSY. - rocker arm

2шт.

7

A27877

SPRING

- rocker shaft

2шт.

8

A27878

WASHER

- rocker shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

4шт.

10

A58657

TUBE

- rocker shaft oil

2шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

12

A61128

BRACKET

- rocker shaft

4шт.

14

A60885

STUD

- rocker support bracket

4шт.

15

A58659

STUD

- rocker support bracket

4шт.

16

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16"

8шт.

17

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

8шт.

18

A58596

ROD

ASSY. - push

8шт.

19

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 30)

8шт.

20

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 31)

4шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust (Order ref. 32)

4шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order ref. 33)

8шт.

23

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 34)

4шт.

24

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

25

A66328

SEAT

- valve springs

8шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 35)

8шт.

27

NSS

NOT SOLD SEPARAT

ROTO COIL - exhaust valve (Order ref. 36)

4шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (Order ref. 37)

4шт.

29

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 38)

16шт.

30

A21653

KIT

LIFTER KIT - push rod (Set of 4)(Std.)

2шт.

30

A22463

KIT

LIFTER KIT - push rod (Set of 4)(.010")

2шт.

31

A41753

VALVE

KIT - exhaust (Set of 2)

2шт.

32

A41757

INSERT

KIT - exhaust valve (Set of 2)

2шт.

33

A41781

GUIDE

KIT - valve stem (Set of 2)

4шт.

34

A41754

VALVE

KIT - intake (Set of 2)

2шт.

35

A42895

SPRING

KIT - valve (Set of 4)

2шт.

36

A44658

COIL

ROTO COIL KIT - (Set of 2)

2шт.

37

A44645

KIT

RETAINER KIT - valve spring (Set of 2 rets. & 4 locks)

2шт.

38

A40352

LOCK

KIT - valve springs (Set of 8)

2шт.
