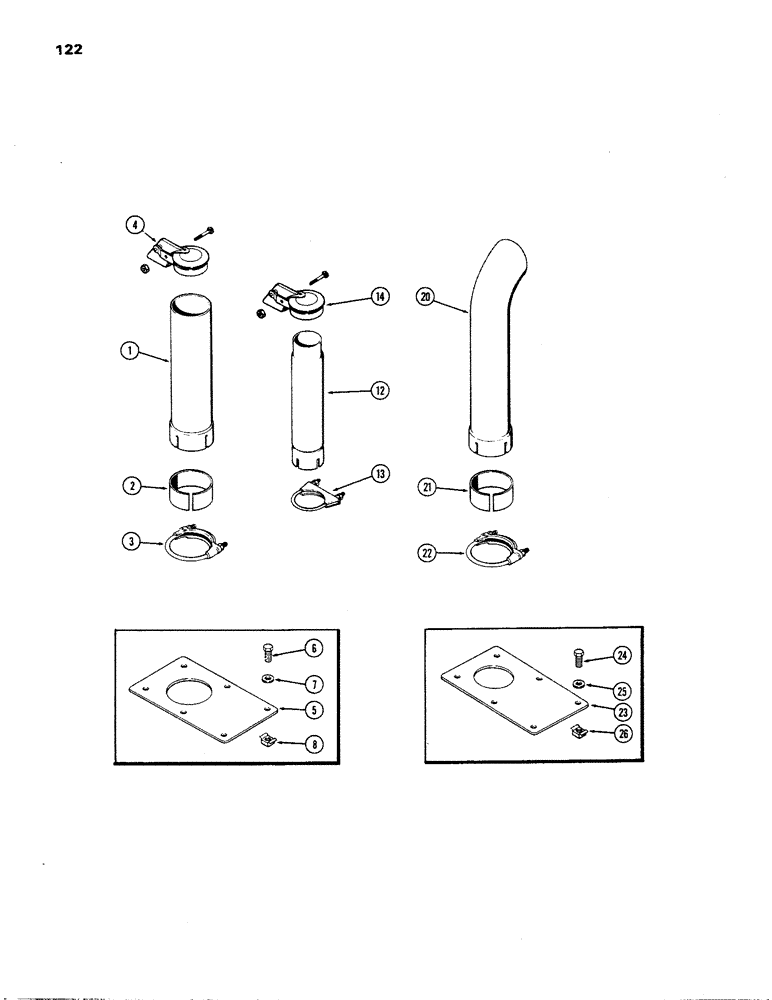

Запчасти Case IH 336D (122) - EXHAUST SYSTEM, STACK ONLY W/ RAIN CAP, WITH 3-1/2 INCH INLET, 336DT TURBOCHARGED ENGINES, K AND L

1

A61637

EXTENSION

PIPE - muffler extension (K only)

1шт.

2

A65904

BUSHING - extension (K only)

1шт.

3

A62878

CLAMP

- extension (K only)

1шт.

4

A62175

CYLINDER END CAP

CAP - muffler weather (K only)

1шт.

5

A65906

PLATE - hood exhaust hole cover (K only)

1шт.

6

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

(K only) Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.

7

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (K only)

6шт.

8

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman (K only) J, Ret, 5/16"-18

6шт.

12

A61110

EXTENSION

PIPE - muffler extension (K only)

1шт.

13

A27115

CLAMP

- extension (K only)

1шт.

14

A59766

CAP

- muffler weather (K only)

1шт.

20

A62850

PIPE

ELBOW - exhaust, 90deg. (L only)

1шт.

21

A65904

BUSHING - exhaust elbow (L only)

1шт.

22

A62878

CLAMP

- exhaust elbow (L only)

1шт.

23

A65906

PLATE - hood exhaust hole cover (L only)

1шт.

24

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

(L only) Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.

25

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (L only)

6шт.

26

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman, Speed grip (L only) J, Ret, 5/16"-18

6шт.
