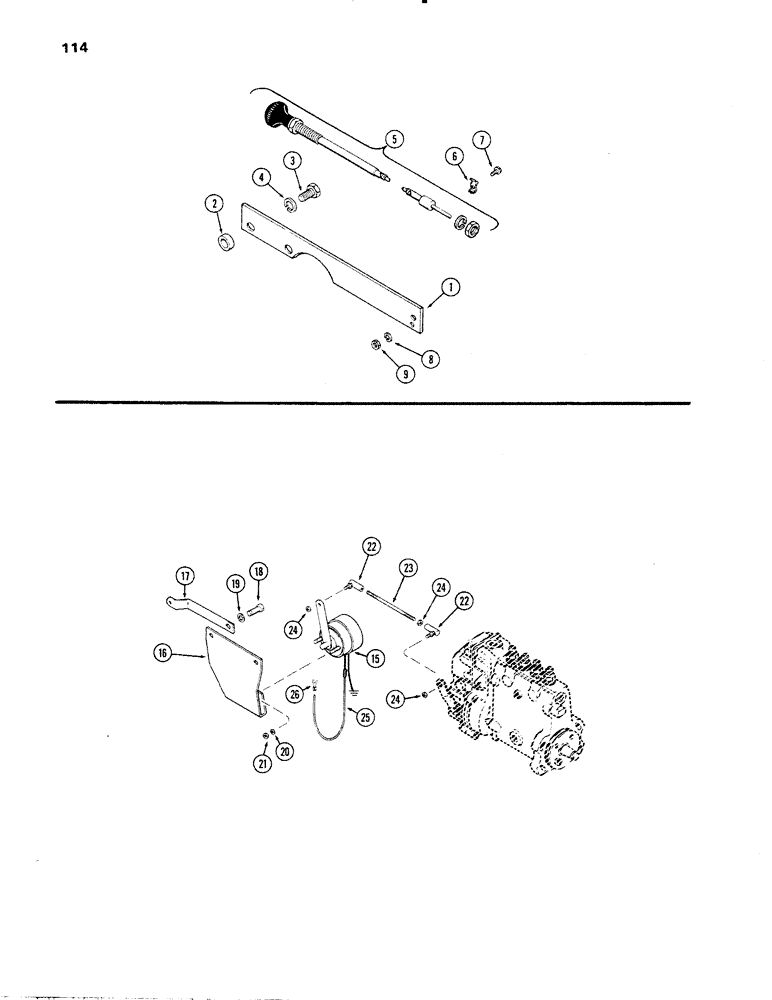

Запчасти Case IH 336D (114) - SHUT-DOWN CONTROL, MANUAL, FUEL TANK, E, F AND G

1

A62095

BRACKET - cable (E only)

1шт.

2

A62096

SPACER

- bracket (E only)

2шт.

3

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(E only) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

(E only) 3/8"

2шт.

5

A66211

CONTROL - fuel shut-off (E only)

1шт.

6

B51765

CLIP

- cable to bracket (E only)

1шт.

7

173-276

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

- #8 c 3/4" rd. hd. mach. (E only)

1шт.

8

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, (E only) #8

1шт.

9

129-16

NUT,#8-32

(E only) #8-32

1шт.

15

A138333

SOLENOID

- rotary 12 volt (Rotary I) (F only)

1шт.

15

A137874

SOLENOID

- rotary 12 volt (Rotary II) (G only)

1шт.

16

A64676

BRACKET - solenoid (F only)

1шт.

16

A137783

BRACKET - solenoid (G only)

1шт.

17

A137803

BRACE

- solenoid bracket (G only)

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(F & G only) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

(F & G only) 3/8"

2шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (F & G only) 1/4"

2шт.

21

25-104

NUT,1/4"-20, G5

(F & G only) 1/4"-20, G5

2шт.

22

A62901

BALL

JOINT - fuel shut-off (F & G only)

2шт.

23

A64679

ROD - solenoid to injection pump (F only)

1шт.

23

A137994

ROD - solenoid to injection pump (G only)

1шт.

24

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. keps (F & G only)

3шт.

25

A66212

WIRE - safety switch to solenoid, 66" (F & G only)

1шт.

26

A66213

TERMINAL - safety sw. to solenoid wire (F & G only)

1шт.
