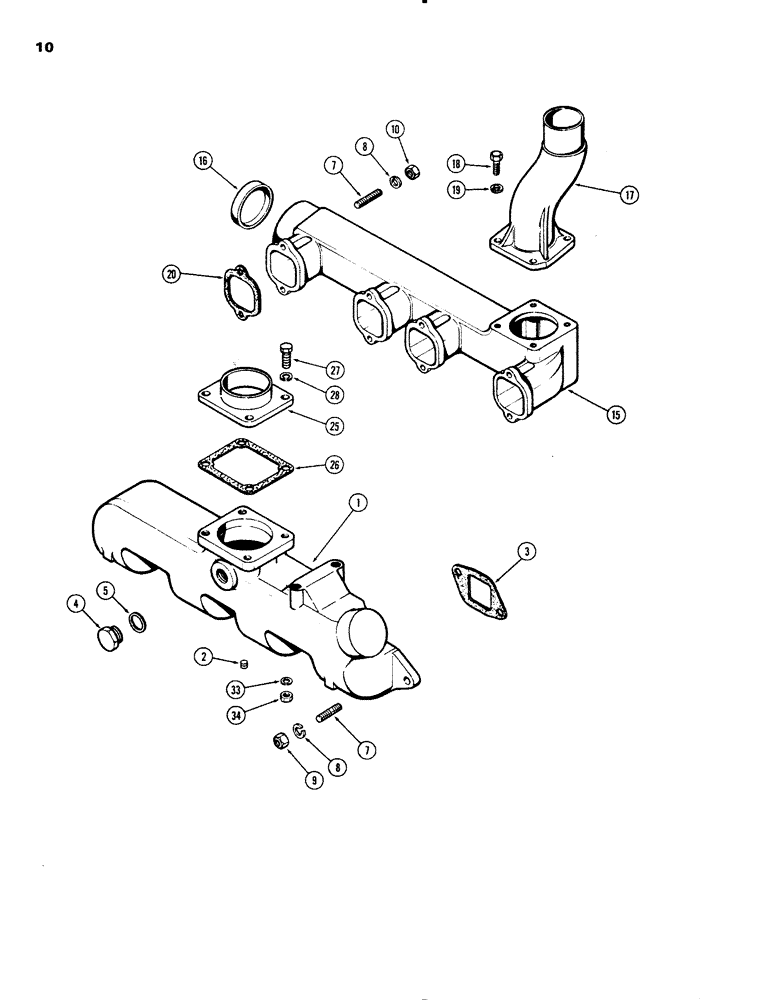

Запчасти Case IH 336D (010) - MANIFOLDS, ENGINE LESS FUEL DEVICE, 336D NATURALLY ASPIRATED ENGINES

1

A140120

MANIFOLD

ASSY. - intake

1шт.

2

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

1шт.

3

A58662

MANIFOLD GASKET

- intake manifold

4шт.

4

A20917

PLUG

- heater hole

1шт.

5

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

7

A59077

STUD

- 3/8" N.C. x 1-3/4"

16шт.

8

92-6

LOCK WASHER,3/8"

16шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (Intake manifold)

8шт.

10

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. seez pruf (exhaust manifold)

8шт.

15

A58749

MANIFOLD

ASSY. - exhaust

1шт.

16

A58750

PLUG,Cup, 3 1/4", Stainless

- 3-1/4" cap

1шт.

17

A58751

MUFFLER

STACK - exhaust

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

25

A65924

FLANGE - intake manifold

1шт.

26

A58910

GASKET

- flange

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
