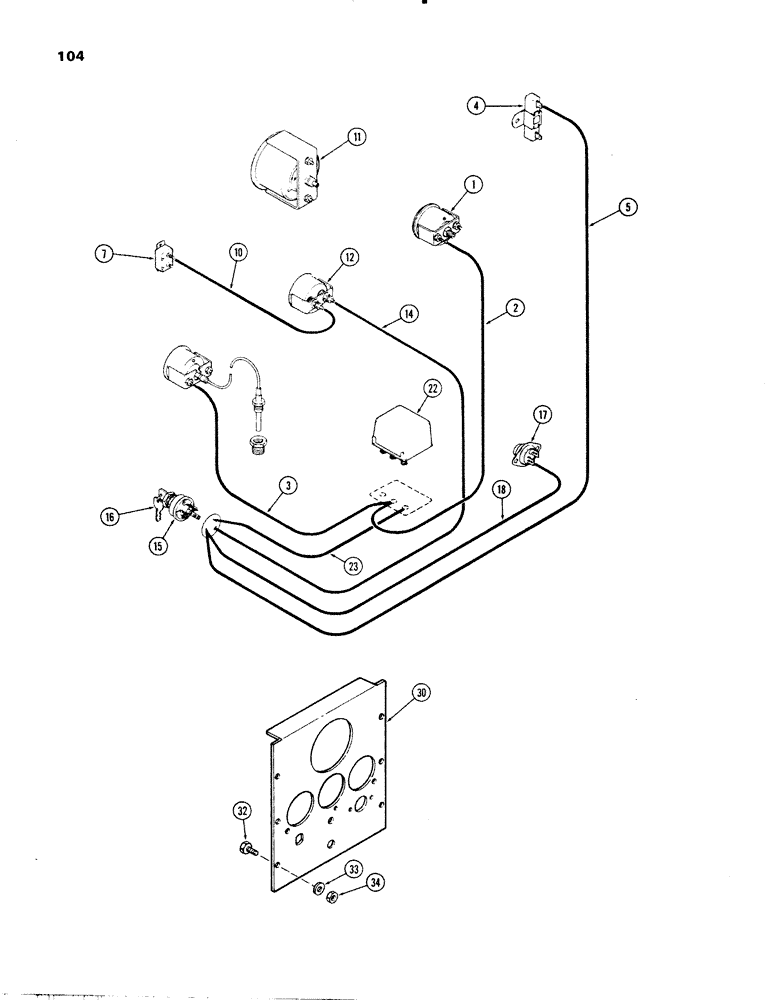

Запчасти Case IH 336D (104) - INSTRUMENTS, COMPARTMENT AND PANEL, REAR PANEL, M

1

A50877

GAUGE - engine oil pressure

1шт.

2

A65978

WIRE - safety switch to oil pressure ga.

1шт.

3

A64977

WIRE - safety switch to water temperature ga.

1шт.

4

F22316

RESISTOR,75 Ohms 0.2 Amps DC

1шт.

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" N. C. pan hd. mach.

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

A137275

WIRE - ign., Serial Range: switch-resistor

1шт.

7

A22877

BREAKER,40A

- circuit, 40 amp.

1шт.

169-134

SCREW - #6 x 3/8" fill hd. wash.

2шт.

193-1003

NUT,Keps, w/LW,#6-32

- #6 hex., keps

2шт.

10

A65977

WIRE - ammeter to circuit breaker

1шт.

11

A11190

TACHOMETER

- engine RPM

1шт.

12

A55699

ELECTRICAL GAUGE

AMMETER

1шт.

14

A65975

WIRE - ign., Serial Range: switch-ammeter

1шт.

15

A75832

SWITCH

- injection

1шт.

182-535

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- #10 N. C. pan hd. mach.

2шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

129-27

NUT,Hex, #10 - 32

- #10 N. C. hex.

2шт.

16

A60319

KEY

- ignition switch

1шт.

17

A36948

SWITCH

- push, ignition

1шт.

18

A64979

WIRE - ign. switch to push button

1шт.

22

A23261

SWITCH

- safety relay

1шт.

23

A65976

WIRE - ign. switch to safety switch

1шт.

30

A139087

PANEL

- instrument

1шт.

32

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

33

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

6шт.

34

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.
