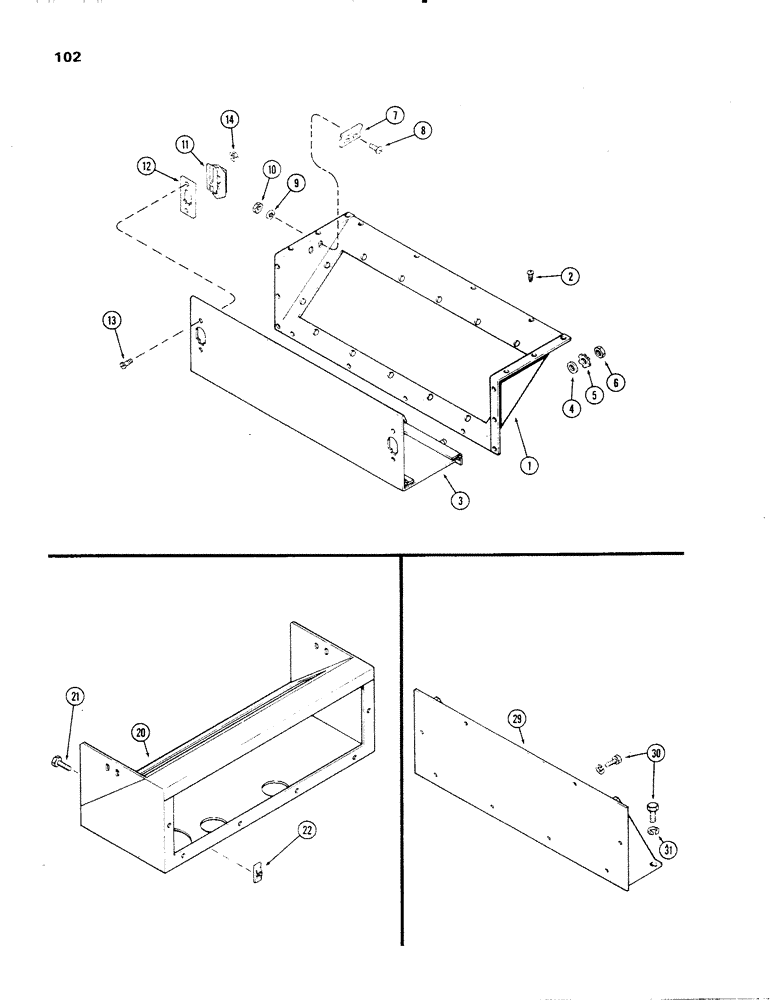

Запчасти Case IH 336D (102) - INSTRUMENTS, COMPARTMENT AND PANEL, HOOD-RIGHT SIDE, G, J OR K AND L

1

A65865

FRAME - instrument panel (G only)

1шт.

2

187-1011

SCREW - 1/4 x 3/8" pan hd. self-tapping (G only)

16шт.

3

A65868

COVER - panel

1шт.

4

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

4шт.

5

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

7

T32744

LATCH - cover

2шт.

8

173-261

SCREW - #12 x 1/2" N.F. rd. hd. mach

4шт.

9

192-17

LOCK WASHER,#12

Washer, Lock, #12

4шт.

10

129-18

NUT,#12-24

- #12 N.F. hex.

4шт.

11

T31759

LOCK, cover, R.H.

1шт.

11

T31758

LOCK - cover, L.H.

1шт.

12

T31757

SPACER- lock

2шт.

13

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- #8 x 1/2" N.F. pan hd. mach.

4шт.

14

131-29

LOCK NUT,#8-32, GB

NUT - #8 hex. Esna lock

4шт.

187-1066

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - #10 x 3/8" hex. self-tapping (Inst. panel to frame)

14шт.

20

A65873

CABINET - instrument panel (J OR K only)

1шт.

21

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(J OR K & L only) Hex Flg, 1/4"-20 x 1/2", Serr

8шт.

22

131-115

NUT

- 1/4" N.C. Tinnerman (J OR K only)

8шт.

A66781

MOLDING - rubber (13-1/2" long (J OR K & L only)

1шт.

L13469

GROMMET - rubber (for 2" hole) (J OR K & L only)

2шт.

29

A50882

BRACKET - instrument panel (L only)

1шт.

30

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(L only) Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

31

92-6

LOCK WASHER,3/8"

(L only) 3/8"

4шт.
