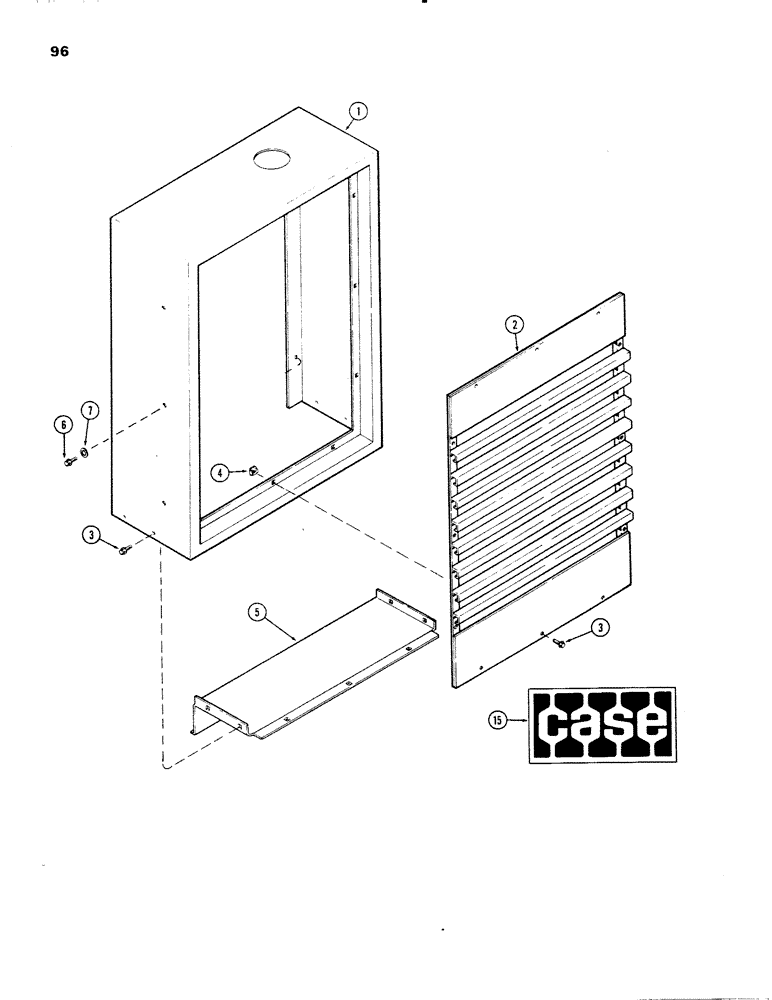

Запчасти Case IH 336D (096) - ENCLOSURE, RADIATOR SHELL, B AND C

1

A65462

SHELL - grille

1шт.

2

A64255

GRILLE (C only)

1шт.

3

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(B only) Hex Flg, 1/4"-20 x 1/2", Serr

7шт.

(C only)

19шт.

4

131-115

NUT

- 1/4" N.C. Tinnerman (B only)

7шт.

(C only)

19шт.

5

A64254

COVER - grille shell, lower

1шт.

6

121-121

BOLT - 3/8 x 1" N.C. hex.

2шт.

6

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex.

4шт.

7

193-103

WASHER, LOCK

WASHER - shakeproof, 3/8", int.

4шт.

15

321-1308

DECAL

- case

1шт.
