(094) - PRE-CLEANER, 336DT AND 336D DIESEL ENGINES, E

Запчасти Case IH 336D (094) - PRE-CLEANER, 336DT AND 336D DIESEL ENGINES, E

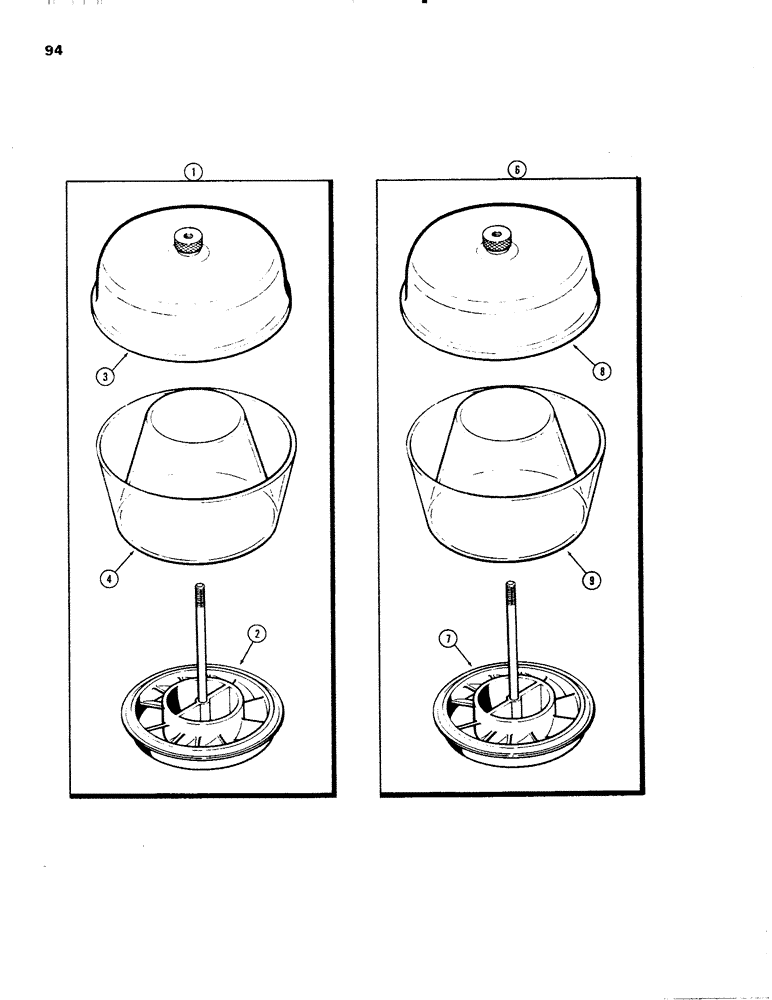

Схема запчастей Case IH 336D - (094) - PRE-CLEANER, 336DT AND 336D DIESEL ENGINES, E
2
6
7
9
1
8
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A64591

CLEANER

PRE-CLEANER ASSY. - (336DT)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - pre-cleaner (Order A64591)

1шт.

3

A42465

COVER

- pre-cleaner

1шт.

4

A42467

HOUSING

BODY - pre-cleaner

1шт.

6

F87657

AIR PRE-CLEANER ASSY

PRE-CLEANER (336D)

1шт.

7

F87659

SLEEVE - pre-cleaner

1шт.

8

73187

COVER

- pre-cleaner

1шт.

9

73186

HOUSING

BODY - pre-cleaner

1шт.
