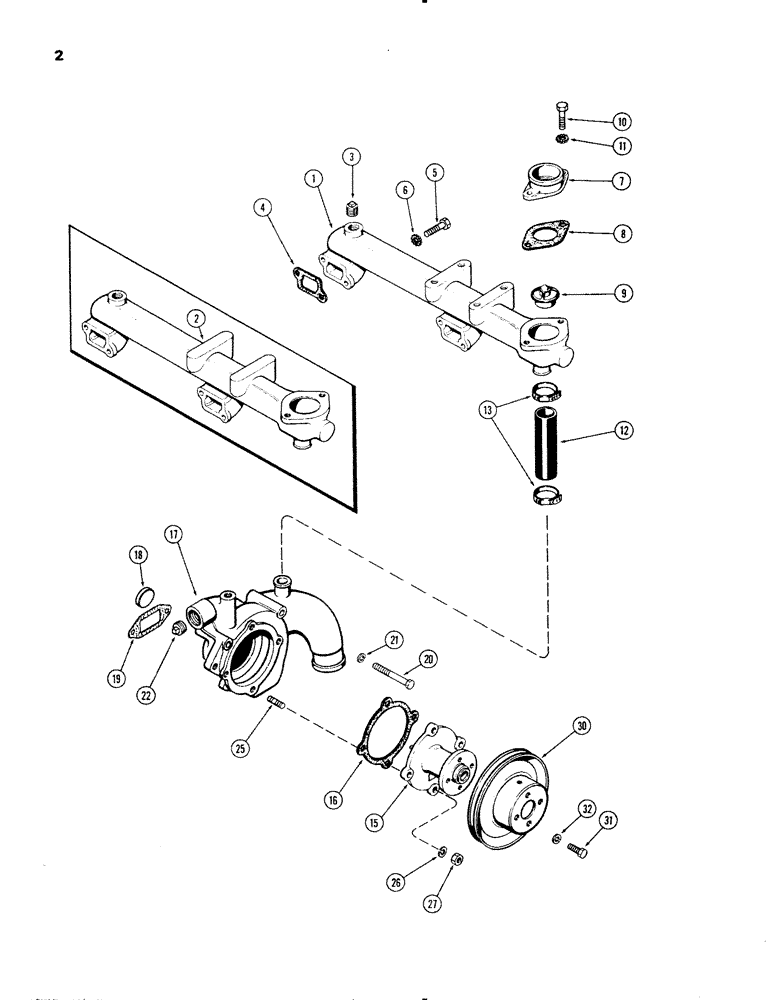

Запчасти Case IH 336D (002) - WATER MANIFOLD AND THERMOSTAT, ENGINE LESS FUEL DEVICE, 336DT AND 336D DIESEL ENGINES

1

A59211

MANIFOLD

- water (336DT)

1шт.

2

A65637

MANIFOLD - water (336D)

1шт.

3

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" sq. hd. pipe

1шт.

4

A58637

MANIFOLD GASKET

- manifold

2шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

2шт.

6

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

7

A58736

HOUSING

- thermostat

1шт.

8

G46907

GASKET

- thermostat housing

1шт.

9

A57641

THERMOSTAT

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

11

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

12

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump by-pass

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

15

A62976

PUMP

ASSY. - water

1шт.

16

A58646

GASKET

-, Serial Range: pump-body

1шт.

17

A60630

HOUSING

BODY ASSY. - water pump

1шт.

18

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup

1шт.

19

A58649

GASKET

-, Serial Range: body-block

1шт.

20

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

20

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex.

2шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" P.T. sq. hd.

2шт.

25

A62234

STUD

- 3/8" N.C. x 1-5/16"

4шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

27

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

4шт.

30

A58837

PULLEY

- water pump

1шт.

31

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.
