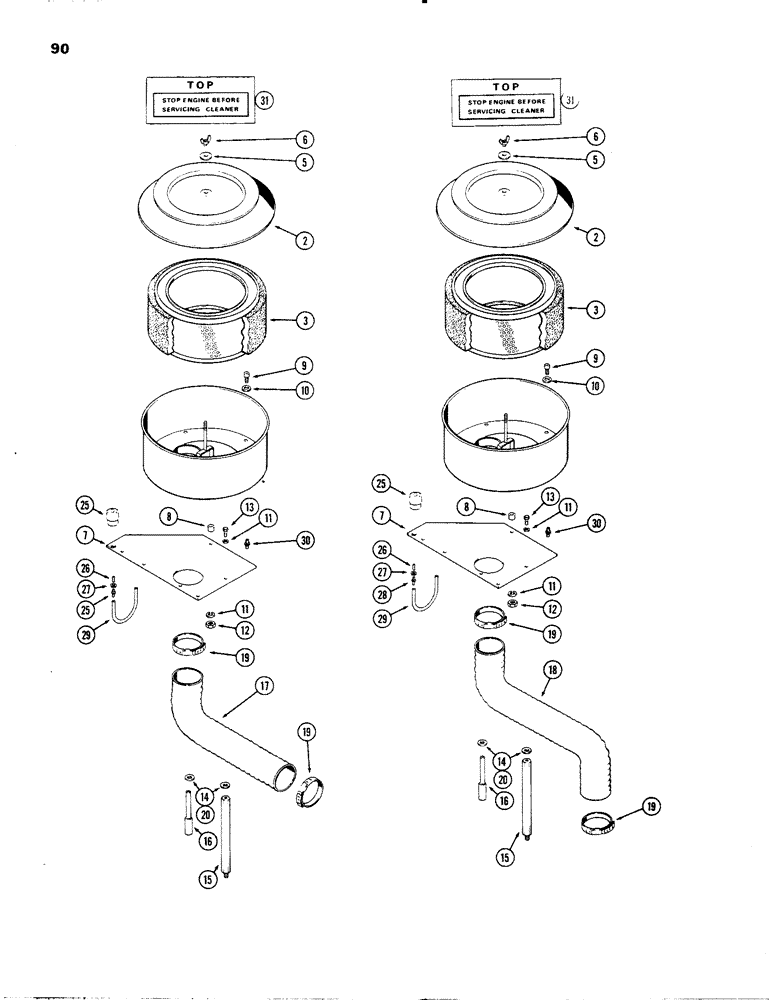

Запчасти Case IH 336D (090) - AIR CLEANER, DRY II, 336DT AND 336D DIESEL ENGINES, D

A66965

CLEANER ASSY. - air

1шт.

2

A44537

COVER - air cleaner

1шт.

3

A44538

ELEMENT

- air cleaner, w/wrapper

1шт.

5

L10610

WASHER - wingnut

1шт.

6

129-505

NUT, WING

WINGNUT - 1/4" N. C.

1шт.

7

A136517

PLATE - air cleaner mounting

1шт.

8

A26547

SPACER,1/4" Pipe x 1/2"

- air cleaner to plate

3шт.

9

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- 5/16 x 1-1/4" N.C. hex.

3шт.

10

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

3шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

12

9635082

NUT,5/16" - 18, Gr 5

3шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

5шт.

15

A65921

POST - air cleaner mounting

1шт.

16

A65920

POST - air cleaner mounting

2шт.

17

A66055

DUCTING - cleaner to turbo, 15" (336DT)

1шт.

18

A65922

DUCT

ING - cleaner to manifold, 39" (336D)

1шт.

19

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16 to 3-3/4"

2шт.

20

195-529

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

1шт.

25

A59568

INDICATOR

- air restriction

1шт.

26

L13267

NIPPLE - 1/8" - 27

1шт.

27

L13268

LOCK NUT

- 1/8" - 27 jam

1шт.

28

A76220

CONNECTOR - 1/8 x 1/8"

1шт.

29

A66776

TUBE - air restriction indicator

1шт.

30

D36264

FITTING

COUPLING - 1/8" P. T.

1шт.

31

321-1568

DECAL

- air cleaner mounting

1шт.
