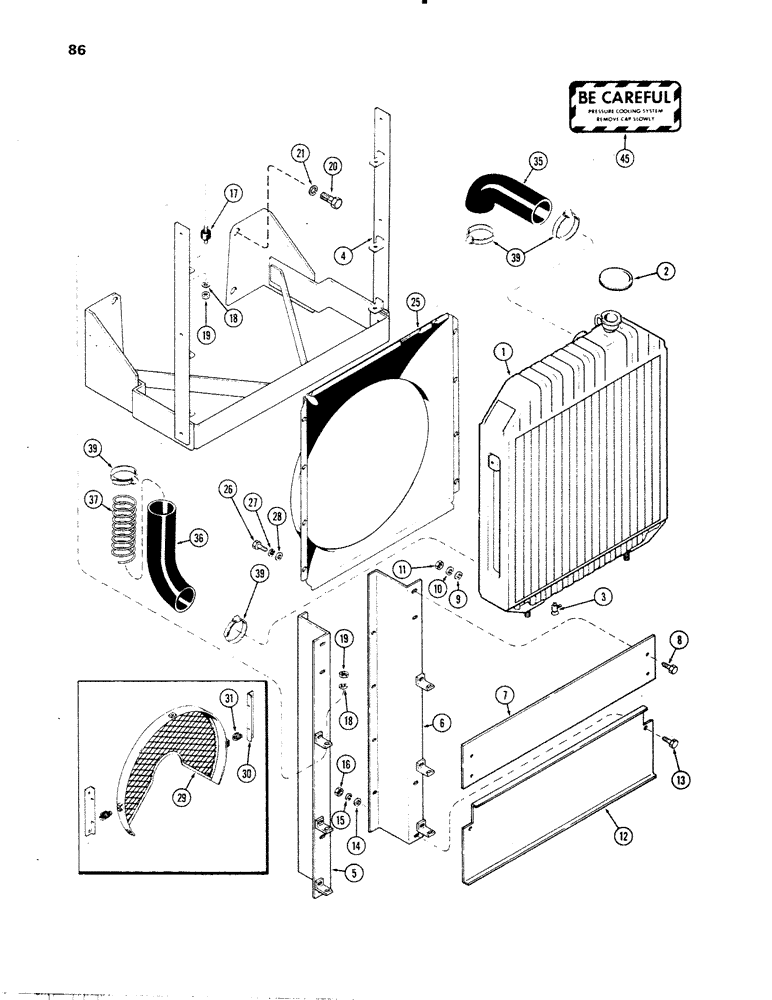

Запчасти Case IH 336D (086) - COOLING SYSTEM, B AND C

1

A66330

RADIATOR

1шт.

2

A61784

CAP

- radiator

1шт.

3

A23655

VALVE

- radiator drain

1шт.

4

A64624

SUPPORT - radiator

1шт.

5

A65584

SUPPORT

BRACKET - radiator mounting, R.H.

1шт.

6

A65585

BRACKET - radiator mounting, L.H.

1шт.

7

65469

TIRE TUBE

BAFFLE - radiator top

1шт.

8

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- 5/16 x 1" N.C. hex.

4шт.

9

195-130

WASHER - 3/8 x 7/8 x 5/64"

4шт.

10

192-45

LOCK WASHER

- lock, 5/16"

4шт.

11

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex.

4шт.

12

A65468

BAFFLE - radiator, bottom

1шт.

13

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

14

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

L11236

BOLT

BOLT - radiator shock mount

6шт.

18

92-5

LOCK WASHER,5/16"

12шт.

19

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

12шт.

20

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25

A59891

GUARD

SHROUD - radiator

1шт.

26

113-29

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

- 1/4 x 3/4" N.C. hex.

8шт.

27

195-127

WASHER - 5/16 x 3/4 x 1/16"

8шт.

28

192-44

LOCK WASHER

- lock, 1/4"

8шт.

29

A65855

GUARD - fan (C only)

1шт.

30

A65860

ANGLE - spring mounting (C only)

2шт.

31

A20966

SPRING

- guard mounting (C only)

2шт.

35

A65689

HOSE,2.50" ID x 9.00", SAE 20R4 CLASS SC

RADIATOR HOSE, , Upper 2.50" ID x 9.00", SAE 20R4 CLASS SC

1шт.

36

A135465

RADIATOR HOSE,2.50" ID x 8.75", SAE 20R4 Class SC

2.50" ID x 8.75", SAE 20R4, Lower

1шт.

37

A65691

SPRING

- lower hose

1шт.

39

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 x 3-1/4"

4шт.

45

321-122

DECAL

- pressure cooling system

1шт.
