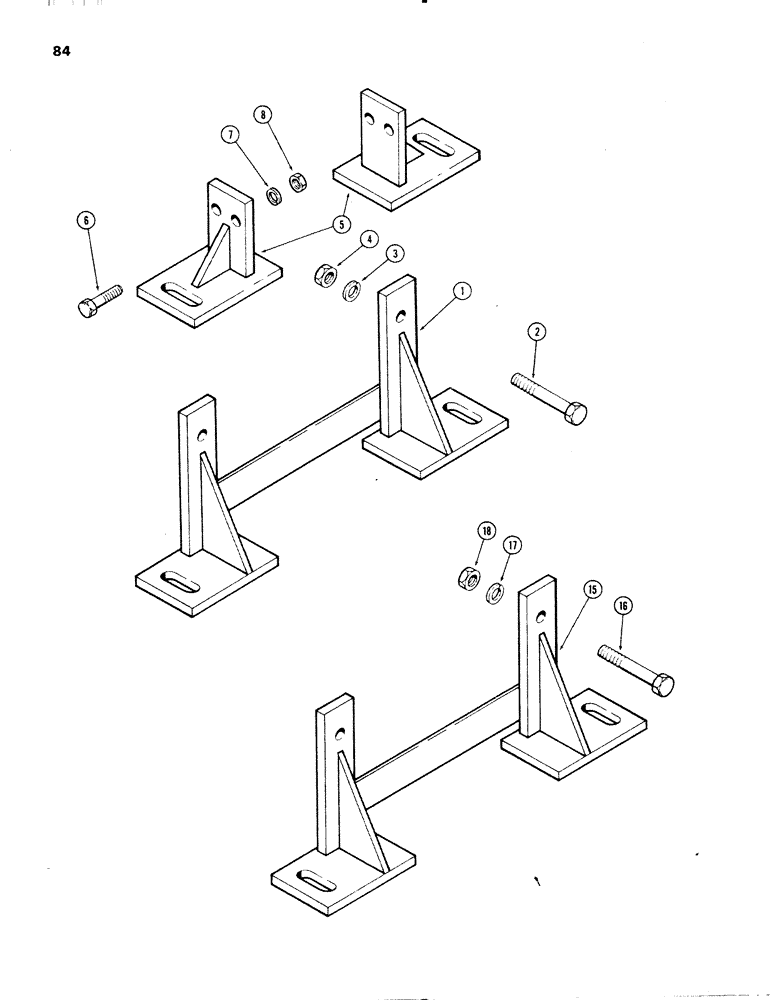

Запчасти Case IH 336D (084) - ENGINE SUPPORTS, FRONT AND REAR, E

1

A135918

SUPPORT - engine, front

1шт.

2

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

4

25-1012

NUT,3/4"-10, G5

2шт.

5

A135919

SUPPORT

- engine, rear

2шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

25-1010

NUT,5/8"-11, G5

2шт.

15

A135918

SUPPORT - engine front

1шт.

16

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

18

25-1012

NUT,3/4"-10, G5

2шт.
