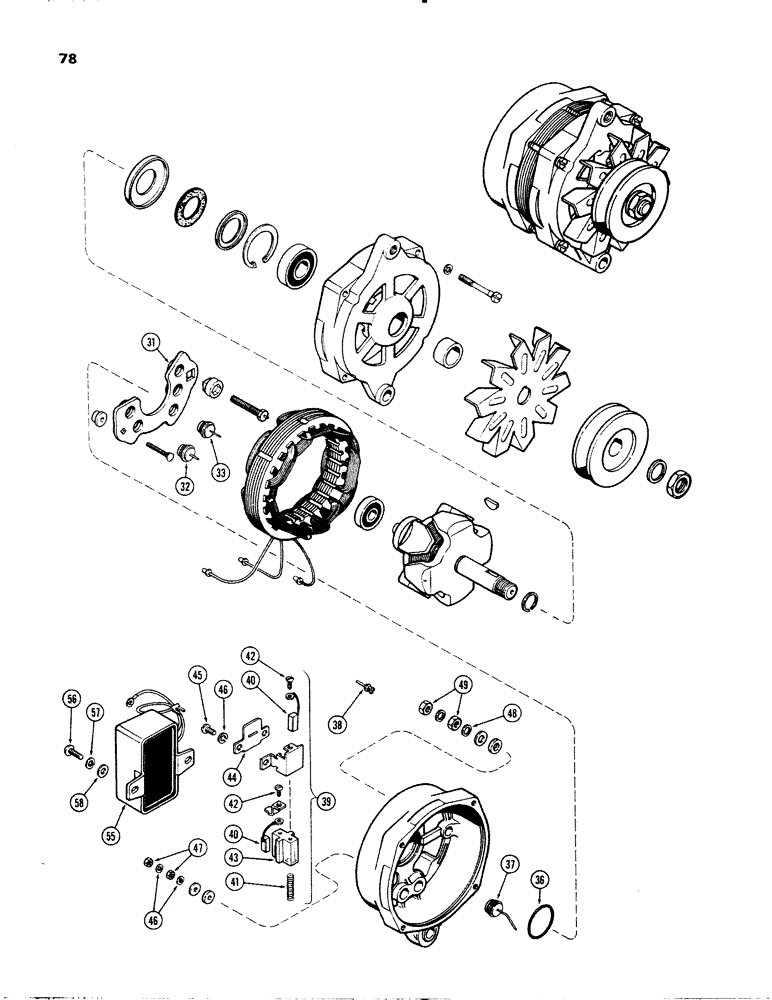

Запчасти Case IH 336D (078) - ALTERNATOR AND REGULATOR, 12 VOLT, 55 AMP., C

A45237

ALTERNATOR

ALTERNATOR ASSY. - (Cont'd from Page 77)

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

31

A44349

PLATE ASSY.

HEAT SINK ASSY. - diode

1шт.

32

NSS

NOT SOLD SEPARAT

DIODE - positive (Order A44349)

3шт.

33

A42261

DIODE

KIT - output diode (matched set of 2)

1шт.

34

A42442

COVER

HEAD ASSY. - slip ring end

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

37

A44180

KIT

DIODE - negative (Set of 3)

1шт.

38

A42266

KIT

KIT - plugs (Set of 10)

1шт.

39

A43952

HOLDER

HOLDER ASSY. - brush

1шт.

40

A41063

BRUSH, COMMUTATOR

BRUSH KIT - armature brush (Set of 2)

1шт.

41

A41064

VALVE SPRING

SPRING KIT - brush (Set of 2)

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - machine, brush retainer

2шт.

43

NSS

NOT SOLD SEPARAT

CLIP - brush holder

1шт.

44

A41073

COVER

INSULATION - cover, brush holder

1шт.

45

181-1012

SCREW - #10-24 x 3/8" rd. hd. mach.

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

NUT - #10-24 hex. jam

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

NUT - lock, 1/4" N.F. hex., jam

2шт.

55

A44543

REGULATOR

REGULATOR ASSY. - voltage

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - regulator mounting

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

60

A42267

DRIVE

PULLEY - drive, alternator

1шт.
