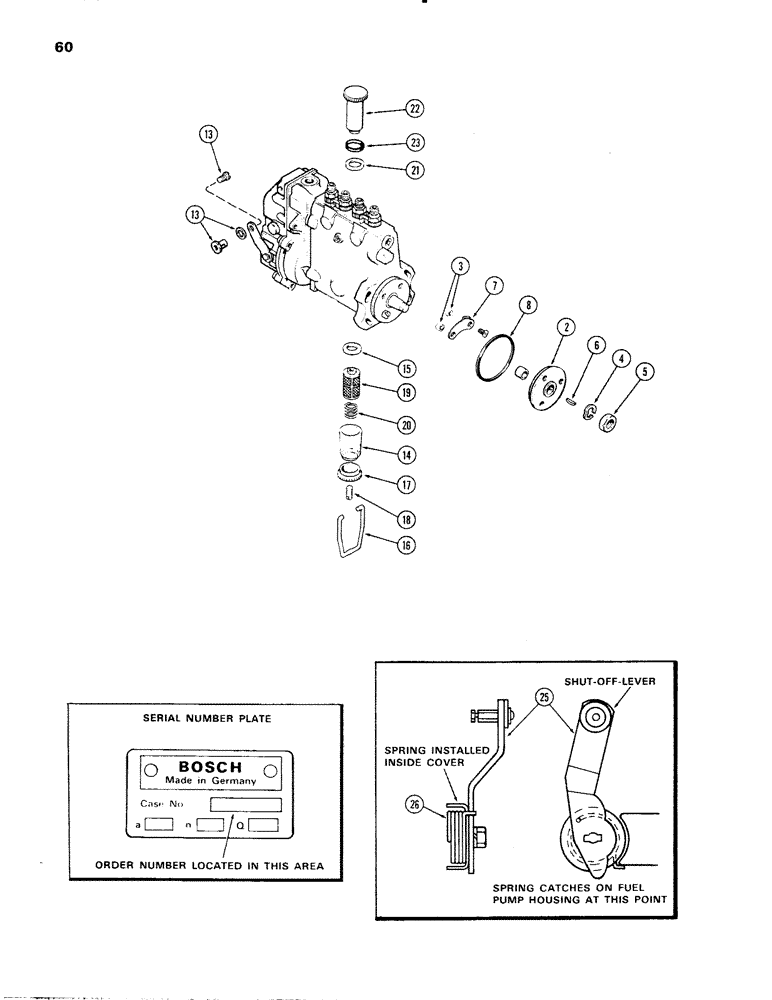

Запчасти Case IH 336D (060) - FUEL INJECTION PUMP, 336D NATURALLY ASPIRATED ENGINES, B, E AND H

138024

LIFT ARM

PUMP ASSY. - fuel injection (see note) (B only)

1шт.

A138023

PUMP ASSY. - fuel injection (see note) (E only)

1шт.

A138025

PUMP ASSY. - fuel injection (see note) (H only)

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - pump timing pointer

2шт.

4

A42312

LOCK WASHER

- lock, pump drive hub nut

1шт.

5

A42313

NUT

- pump drive hub

1шт.

6

A20933

KEY

- pump drive, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - seal, pump mounting

1шт.

13

A44259

SCREW

- lock, control cable

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAIL NUT - retaining

1шт.

18

A43349

STUD

- retaining, bowl

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter, transfer pump

1шт.

20

A43345

SPRING

- retaining, element

1шт.

21

A43351

SEAL

- primer & port copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER - hand, fuel pump

1шт.

23

A44761

GASKET

- primer pump (rubber)(replaces A41761)

1шт.

REF#23 SHOULD READ A44761

1шт.

25

A45273

LEVER - shut-off (w/Bowden wire connector)

1шт.

26

A45277

SPRING - torsion, shut-off lever (used w/A45273 lever)

1шт.
