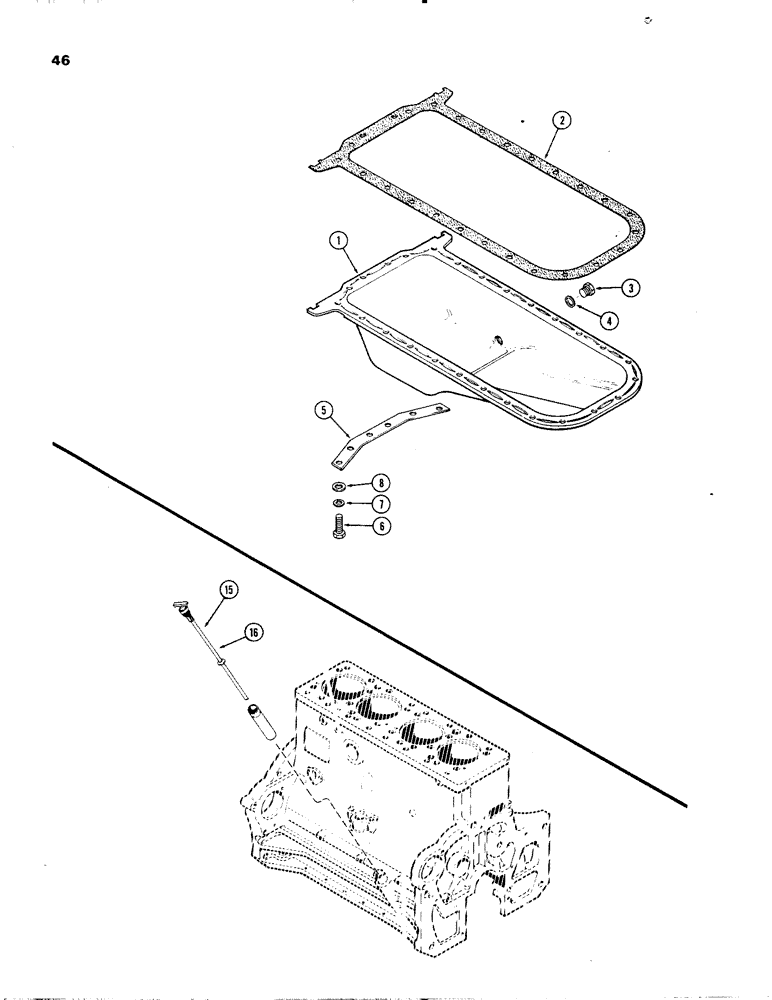

Запчасти Case IH 336D (046) - OIL PAN, ENGINE LESS FUEL DEVICE, 336DT AND 336D DIESEL ENGINES

1

A62711

PAN

- oil

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See page 57)

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- oil pan drain

1шт.

4

A58933

OIL PAN GASKET SET

- plug

1шт.

5

A58932

STRAP

- pan reinforcement

1шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

24шт.

7

92-6

LOCK WASHER,3/8"

24шт.

8

195-25

WASHER,3/8"

24шт.

15

A138330

DIPSTICK

- oil level

1шт.
