Запчасти Case IH 336BDT (024) - CAMSHAFT, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES

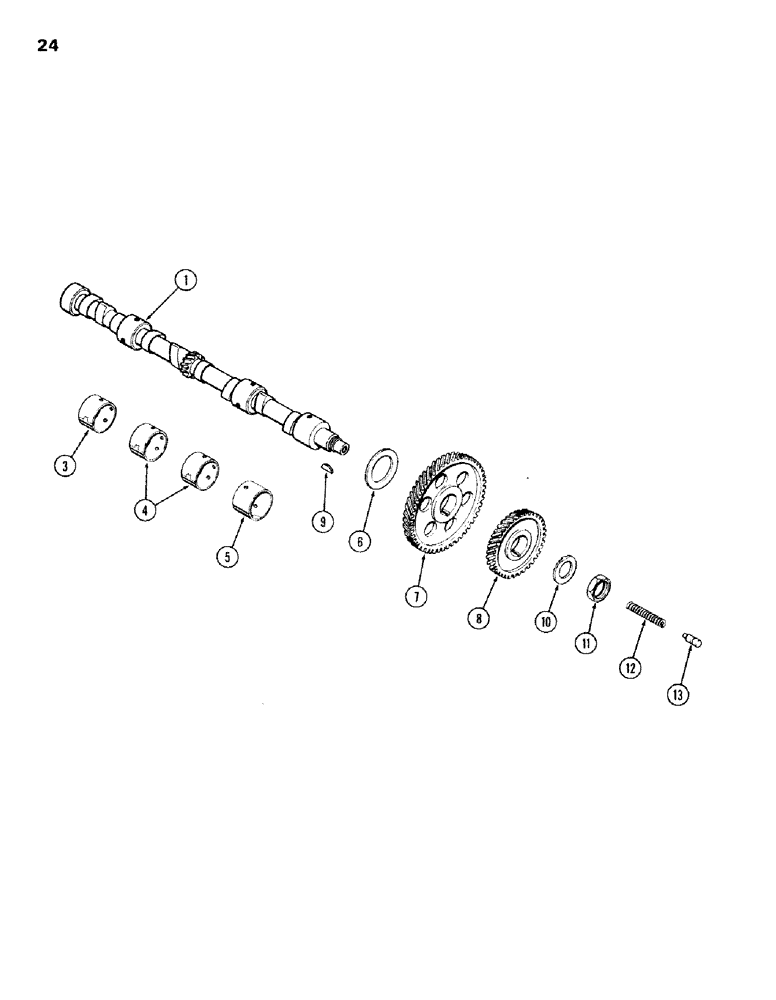

Схема запчастей Case IH 336BDT - (024) - CAMSHAFT, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES
4
10
8
1
6
13
9
3
11
12
5
7

Артикул

Название

Примечание

Количество

1

A62733

SHAFT

CAMSHAFT

1шт.

A23577

KIT

BUSHING KIT - camshaft

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear, 1-5/32" wide

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - center, 1-7/16" wide

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front, 1-21/32" wide

1шт.

6

A21017

WASHER

- camshaft thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - 5/16 x 1-5/16" Hi-Pro

1шт.

10

A58594

LOCK WASHER

- lock, camshaft nut

1шт.

11

A58595

NUT

- camshaft

1шт.

12

A27853

SPRING

- plunger, camshaft thrust

1шт.

13

A27852

PLUNGER

- thrust, camshaft

1шт.

Выбрано товаров: 13
