Запчасти Case IH 336BDT (018) - VALVE MECHANISM, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES

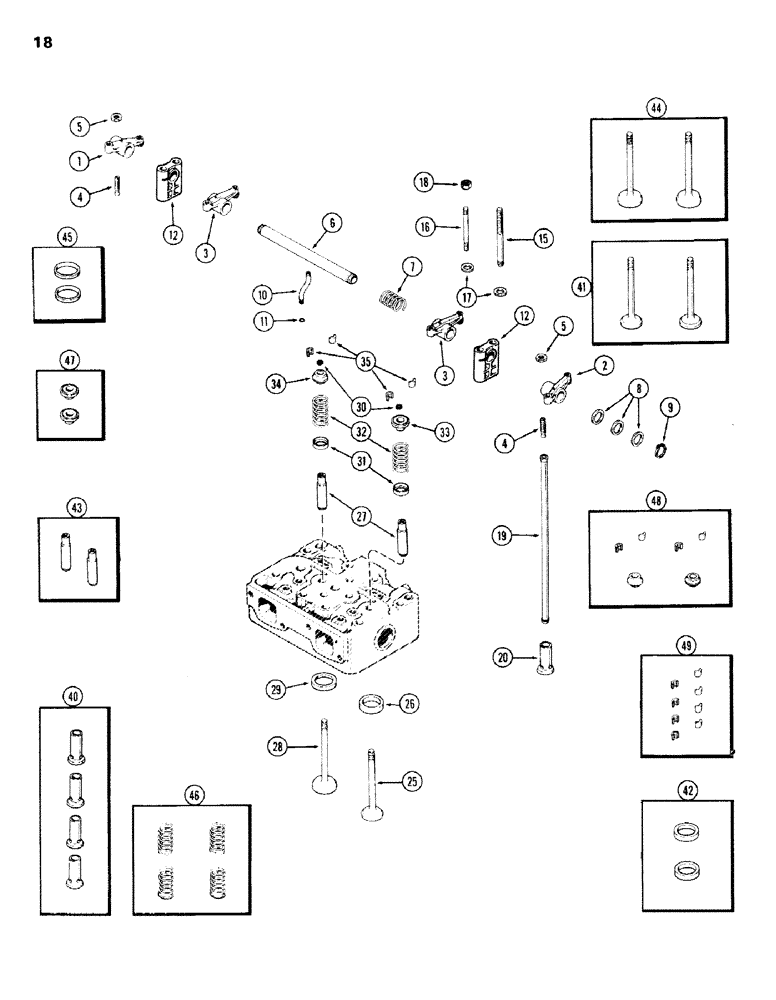

Схема запчастей Case IH 336BDT - (018) - VALVE MECHANISM, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES
19
8
45
47
30
44
4
3
18
35
12
15
16
9
48
27
4
20
3
43
33
17
40
6
10
29
31
7
28
2
32
42
34
11
25
46
5
49
1
41
12
5
26

Артикул

Название

Примечание

Количество

1

A58655

ARM

- rocker, exhaust valve (1st & 3rd cylinders)

2шт.

2

A58656

ARM

- rocker, exhaust valve (2nd & 4th cylinders)

2шт.

3

A58654

ARM

- rocker, intake valve

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

8шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex., jam

8шт.

6

A57532

SHAFT

ASSY. - rocker arm

2шт.

7

A27877

SPRING

- rocker shaft

2шт.

8

A27878

WASHER

WAHSER - rocker shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker shaft #87, Ext

4шт.

10

A58657

TUBE

- rocker shaft oil

2шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

'O' RING - rocker shaft oil tube

2шт.

12

A61128

BRACKET

- rocker shaft

4шт.

15

A60885

STUD

- support bracket

4шт.

16

A58659

STUD

- support bracket

4шт.

17

195-29

WASHER,7/16"

- 15/32 x 59/64 x 5/64"

8шт.

18

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

8шт.

19

A58596

ROD

ASSY. - push

8шт.

20

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 40)

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 41)

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (order ref. 42)

4шт.

27

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order ref. 43)

8шт.

28

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 44)

4шт.

29

NSS

NOT SOLD SEPARAT

INSERT - intake valve (Order ref. 45)

4шт.

30

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

31

A58623

SEAT

- valve springs

8шт.

32

NSS

NOT SOLD SEPARAT

SPRING - valve (Order ref. 46)

8шт.

33

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order ref. 47)

4шт.

34

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order ref. 48)

4шт.

35

NSS

NOT SOLD SEPARAT

LOCK - valve spring (order ref. 49)

16шт.

40

A21653

KIT

LIFTER KIT - push rod (Set of 4) (Std.)

2шт.

40

A22463

KIT

LIFTER KIT - push rod (Set of 4) (.010")

2шт.

41

A41753

VALVE

KIT - exhaust (set of 2)

2шт.

42

A41757

INSERT

KIT - exhaust valve (Set of 2)

2шт.

43

A41781

GUIDE

KIT - valve stem (Set of 2)

2шт.

44

A41754

VALVE

KIT - intake (Set of 2)

2шт.

45

A42259

INSERT

KIT - intake valve (Set of 2)

2шт.

46

A42895

SPRING

KIT - valve (Set of 4)

2шт.

47

A57433

COIL

ROTO CAP KIT - exhaust valve (Set of 2)

2шт.

48

A21657

LOCK

RETAINER KIT - intake valve (Set of 2 rets. & 4 locks)

2шт.

49

A40352

LOCK

KIT - valve spring (Set of 8)

2шт.

Выбрано товаров: 40
