Запчасти Case IH 336BDT (162) - ACCESSORIES, B, C, D, FUEL FILTER GAUGE

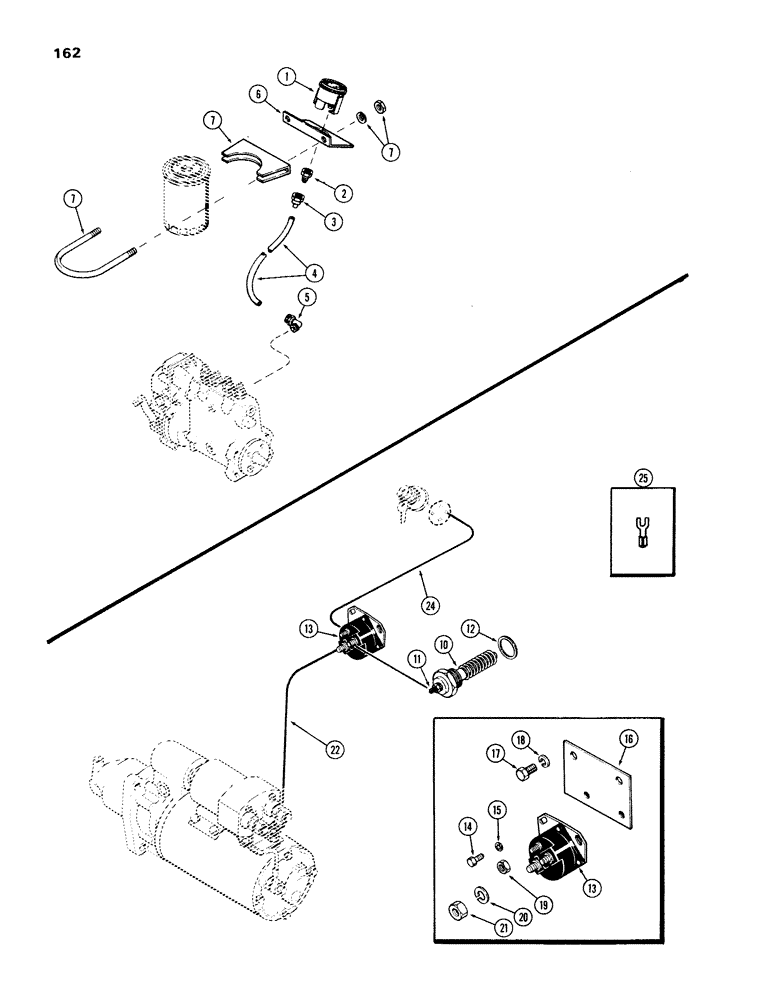

Схема запчастей Case IH 336BDT - (162) - ACCESSORIES, B, C, D, FUEL FILTER GAUGE
20
4
12
7
15
7
22
2
19
6
25
16
21
17
1
7
24
14
18
5
13
13
3
10
11

Артикул

Название

Примечание

Количество

1

A75827

ELECTRICAL GAUGE

GAUGE - fuel pressure (Qty: B- 1)

1шт.

2

A76220

CONNECTOR - gauge to snubber (Qty: B- 1)

1шт.

3

A28061

FITTING

SNUBBER - connector to tube (Qty: B- 1)

1шт.

4

A76221

TUBE - fuel pressure (Qty: B- 1)

1шт.

5

T39541

ELBOW

- tube to pump (Qty: B- 1)

1шт.

6

A66102

BRACKET

- fuel pressure gauge (Qty: B- 1)

1шт.

7

A62880

COLLAR CLAMP

CLAMP - bracket to fuel filter (Qty: B- 1)

1шт.

10

A37775

HEATER

- manifold, 12 volt (Qty: C- 1)

1шт.

10

A66333

HEATER

- manifold, 24 volt (Qty: D- 1)

1шт.

11

129-503

NUT,1/4"-20, Brass

(Qty: C, D- 1) 1/4"-20, Brass

1шт.

12

A20916

MANIFOLD GASKET

GASKET - heater (Qty: C, D- 1)

1шт.

13

A39079

SOLENOID

- manifold heater, 12 volt (Qty: C- 1)

1шт.

13

D31479

SOLENOID SWITCH

SOLENOID - manifold heater, 24 volt (Qty: D- 1)

1шт.

14

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Qty: C, D- 2) Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

15

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, (Qty: C, D- 2) Int Tooth, 1/4"

1шт.

16

A60880

PLATE - solenoid mounting (Qty: C, D- 1)

1шт.

17

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Hex, 5/16"-18 x 5/8", G5, Full (Qty: C, D- 2)

1шт.

18

92-5

LOCK WASHER,5/16"

(Qty: D, C- 2) 5/16"

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex. keps (Qty: C, D- 1)

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (Qty: C, D- 2) 5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

(Qty: C, D- 2) 5/16"-18, G5

1шт.

22

A59713

ELECTRICAL WIRE

WIRE - starter to heater solenoid (Qty: C, D- 1)

1шт.

23

A59712

WIRE - heater solenoid to heater (Qty: C, D- 1)

1шт.

24

A50897

WIRE - heater solenoid to ign. sw. (Qty: C, D- 1)

1шт.

25

A66213

TERMINAL - safety sw. to fuel sol. wire (Qty: C, D- 1)

1шт.

Выбрано товаров: 25
