Запчасти Case IH 336BDT (158) - EXHAUST SYSTEM, MUFFLER, HORIZONTAL, W/ 90 DEGREE ELBOW, ENCLOSED UNIT ONLY, W/ 3-1/2 INCH INLET, H

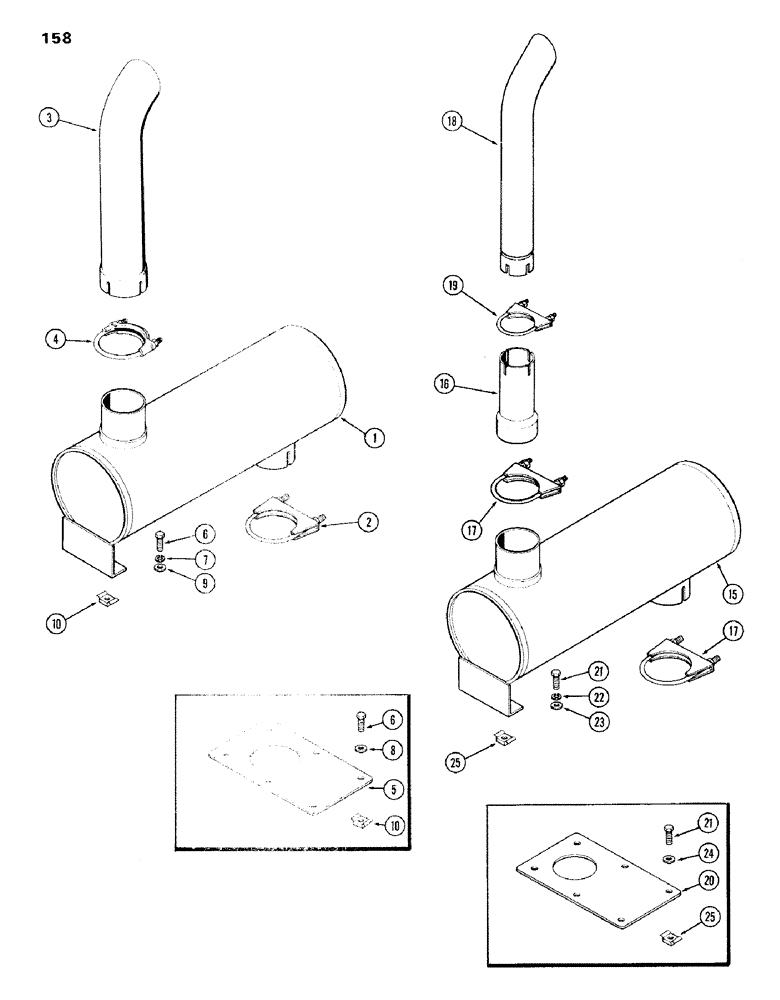

Схема запчастей Case IH 336BDT - (158) - EXHAUST SYSTEM, MUFFLER, HORIZONTAL, W/ 90 DEGREE ELBOW, ENCLOSED UNIT ONLY, W/ 3-1/2 INCH INLET, H
2
8
17
21
21
25
10
19
25
20
5
6
15
22
4
18
1
24
10
16
6
17
23
9
3
7

Артикул

Название

Примечание

Количество

1

A65900

MUFFLER - exhaust

1шт.

2

A62880

COLLAR CLAMP

CLAMP - muffler

1шт.

3

A62850

PIPE

ELBOW - muffler exhaust, 90 degrees

1шт.

4

A62878

CLAMP

- extension

1шт.

5

A65906

PLATE - hood exhaust hole cover

1шт.

6

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

8шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

6шт.

9

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

2шт.

10

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman, Speed grip J, Ret, 5/16"-18

8шт.

15

A65901

MUFFLER - horizontal

1шт.

16

A65902

PIPE - exhaust extension

1шт.

17

A62876

CLAMP

- muffler

2шт.

18

A62470

EXTENSION

ELBOW - exhaust, 90 degrees

1шт.

19

A62874

CLAMP

- muffler

1шт.

20

A65905

PLATE - hood exhaust hole cover

1шт.

21

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

8шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

2шт.

24

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

6шт.

25

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman, Speed grip J, Ret, 5/16"-18

8шт.

Выбрано товаров: 21
