Запчасти Case IH 336BDT (012) - CYLINDER HEAD AND COVER, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES

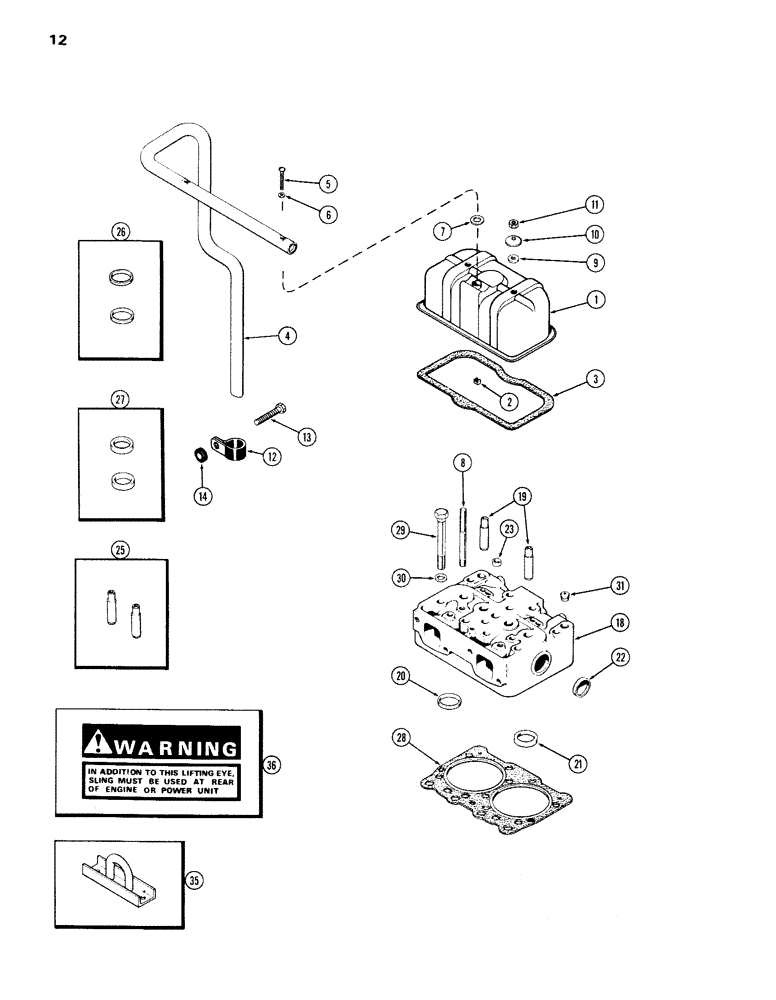

Схема запчастей Case IH 336BDT - (012) - CYLINDER HEAD AND COVER, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES
11
36
3
18
6
31
9
13
27
10
35
25
30
23
7
21
8
28
19
14
20
29
4
2
26
22
12
1
5

Артикул

Название

Примечание

Количество

1

A58929

COVER

COVER ASSY. - cylinder head

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cover

2шт.

4

A64994

TUBE

TUBE - breather

1шт.

5

75-440

SCREW

SCREW - 1/4 x 2-1/2" N.C. rd. hd.

2шт.

6

A34133

GASKET

GASKET - breather tube

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

2шт.

8

A60885

STUD

STUD - 7/16" N.C. X 6-1/16"

4шт.

9

A23684

GASKET

GASKET - cover stud

4шт.

10

A23683

WASHER

WASHER - beveled

4шт.

11

25-107

NUT,7/16"-14, G5

NUT - 7/16" N.C. hex.

4шт.

12

D34033

CLAMP

CLAMP - breather tube

1шт.

13

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

BOLT - 1/2 x 2-1/2" N.C. sems

2шт.

14

A64261

SPARE PART SPACER - 17/32 X 1 X 7/16"

8шт.

18

A60558

CYLINDER HEAD

HEAD ASSY. - cylinder

2шт.

18

AR66686

REMAN-CYLINDER HEAD

Cylinder Head

2шт.

18

AC66686

CORE-CYLINDER HEAD

Return Number

2шт.

19

NSS

NOT SOLD SEPARAT

GUIDES - valve stems (Order ref. 25)

4шт.

20

NSS

NOT SOLD SEPARAT

INSERT - intake valve (Order ref. 26)

2шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 27)

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" cup

2шт.

23

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" cup

1шт.

25

A41781

GUIDE

GUIDE KIT - valve stem (Set of 2)

4шт.

26

A42259

INSERT

INSERT KIT - intake valve (Set of 2)

2шт.

27

A41757

INSERT

INSERT KIT - exhaust valve (Set of 2)

2шт.

28

A64113

CYLINDER HEAD GASKET

GASKET - cylinder head

2шт.

29

A62732

STEP BOLT

BOLT - 5/8 X 5-5/8" N.C. hex.

20шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32 x 1 x 1/8"

20шт.

31

221-843

PLUG,Hex Soc, 3/8"-18

PLUG -3/8" P.T. hex. sckt. hd.

4шт.

35

A64941

SPARE PART BRACKET - engine lifting

1шт.

36

321-2538

SPARE PART DECAL - warning, lifting bracket

1шт.

Выбрано товаров: 31
