Запчасти Case IH 336BDT (155A) - EXHAUST SYSTEM, QUIET, MUFFLER, VERTICAL WITH RAIN CAP, C, D

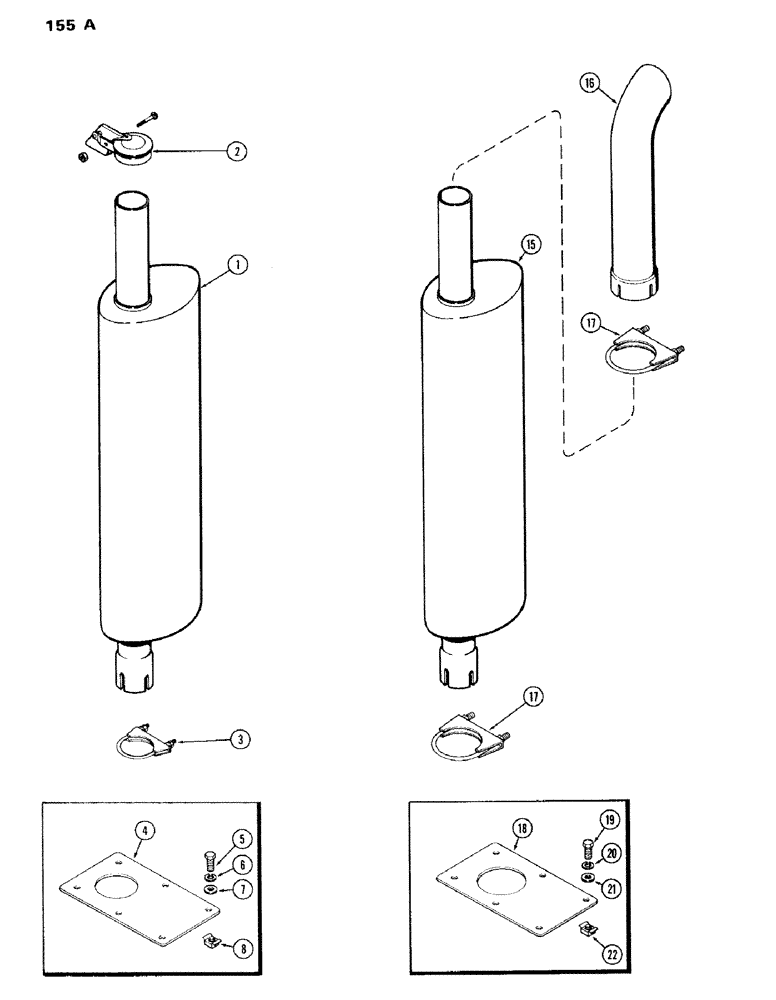

Схема запчастей Case IH 336BDT - (155A) - EXHAUST SYSTEM, QUIET, MUFFLER, VERTICAL WITH RAIN CAP, C, D
7
8
19
20
2
6
5
21
4
17
16
18
15
22
1
3
17

Артикул

Название

Примечание

Количество

1

A65984

MUFFLER - vertical (Qty: C- 1)

1шт.

2

A59766

CAP

- muffler (Qty: C- 1)

1шт.

3

A62876

CLAMP

- muffler (Qty: C- 1)

1шт.

4

A65905

PLATE - hood exhaust hole cover (Qty: C- 1)

1шт.

5

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

(Qty: C- 6) Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (Qty: C- 6) 5/16"

1шт.

7

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64" (Qty: C- 6)

1шт.

8

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman (Qty: C- 6) J, Ret, 5/16"-18

1шт.

15

A65984

MUFFLER - vertical (Qty: E- 1)

1шт.

16

A62471

EXTENSION

ELBOW - exhaust, 90deg. (Qty: E- 1)

1шт.

17

A62876

CLAMP

- exhaust (Qty: E- 2)

1шт.

18

A65905

PLATE - hood exhaust hole cover (Qty: E- 1)

1шт.

19

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

(Qty: E- 6) Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (Qty: E- 6) 5/16"

1шт.

21

195-103

WASHER,5/16"

- 3/8 x 5/8 x 5/64" (Qty: E- 6)

1шт.

22

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman (Qty: E- 6) J, Ret, 5/16"-18

1шт.

Выбрано товаров: 16
