Запчасти Case IH 336BDT (154) - EXHAUST SYSTEM, MUFFLER, VERTICAL WITH 90 DEGREE ELBOW, WITH 3-1/2 INCH INLET

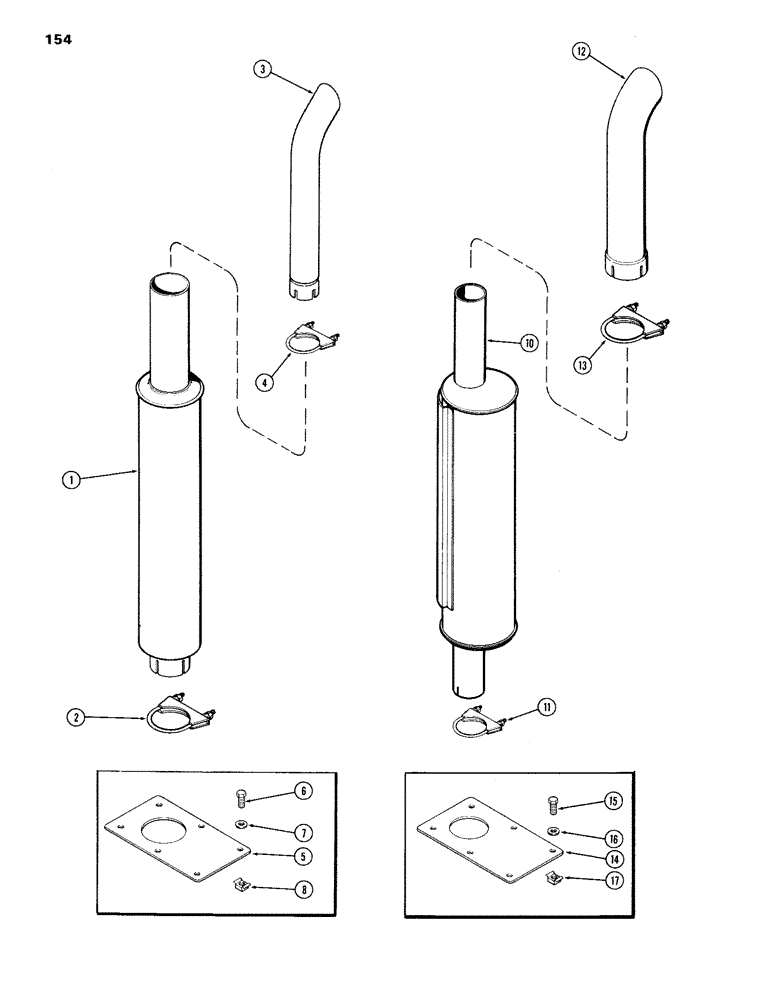

Схема запчастей Case IH 336BDT - (154) - EXHAUST SYSTEM, MUFFLER, VERTICAL WITH 90 DEGREE ELBOW, WITH 3-1/2 INCH INLET
7
17
5
4
16
3
2
10
8
15
11
14
13
1
6
12

Артикул

Название

Примечание

Количество

1

A64990

MUFFLER

- vertical

1шт.

2

A62880

COLLAR CLAMP

CLAMP - muffler

1шт.

3

A62850

PIPE

ELBOW - exhaust, 90 degrees

1шт.

4

A62878

CLAMP

- elbow

1шт.

5

A65906

PLATE - hood exhaust hole cover

1шт.

6

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

7

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.

8

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman, Speed grip J, Ret, 5/16"-18

4шт.

10

A59765

MUFFLER

- vertical

1шт.

11

A62876

CLAMP

- muffler

1шт.

12

A62471

EXTENSION

ELBOW - exhaust, 90 degrees

1шт.

13

A62876

CLAMP

- muffler

1шт.

14

A65905

PLATE - hood exhaust hole cover

1шт.

15

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

16

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

6шт.

17

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman, Speed grip J, Ret, 5/16"-18

6шт.

Выбрано товаров: 16
