Запчасти Case IH 336BDT (152) - EXHAUST SYSTEM, MUFFLER, VERTICAL WITH RAIN CAP, WITH 3-1/2 INCH INLET, 336BDTD TURBOCHARGED ENG., B

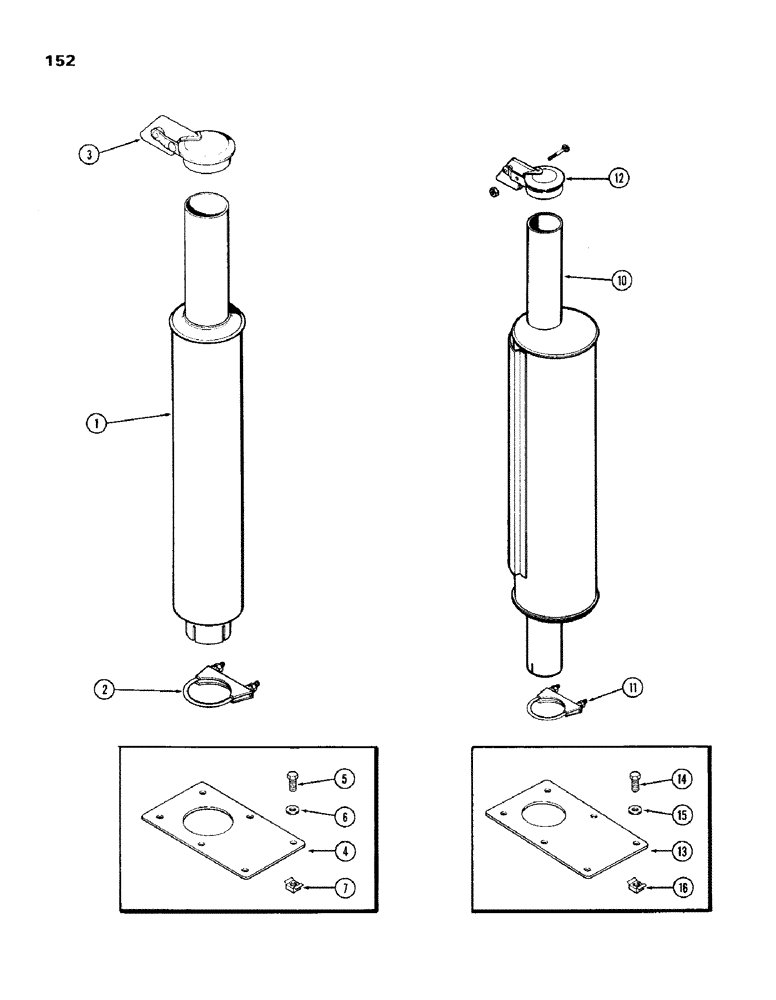

Схема запчастей Case IH 336BDT - (152) - EXHAUST SYSTEM, MUFFLER, VERTICAL WITH RAIN CAP, WITH 3-1/2 INCH INLET, 336BDTD TURBOCHARGED ENG., B
15
2
5
6
7
4
14
16
12
11
3
1
13
10

Артикул

Название

Примечание

Количество

1

A64990

MUFFLER

- vertical

1шт.

2

A62880

COLLAR CLAMP

CLAMP - muffler

1шт.

3

A62175

CYLINDER END CAP

CAP - weather

1шт.

4

A65906

PLATE - hood exhaust hole cover

1шт.

5

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

6

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.

7

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman, Speed grip J, Ret, 5/16"-18

4шт.

10

A59765

MUFFLER

- vertical

1шт.

11

A62876

CLAMP

- muffler

1шт.

12

A59766

CAP

- muffler weather

1шт.

13

A65905

PLATE - hood exhaust hole cover

1шт.

14

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

15

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

6шт.

16

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman J, Ret, 5/16"-18

6шт.

Выбрано товаров: 14
