Запчасти Case IH 336BDT (148) - POWER TAKE-OFF IN LINE OVER CENTER CLUTCH, 10 INCH SINGLE PLATE, C, D

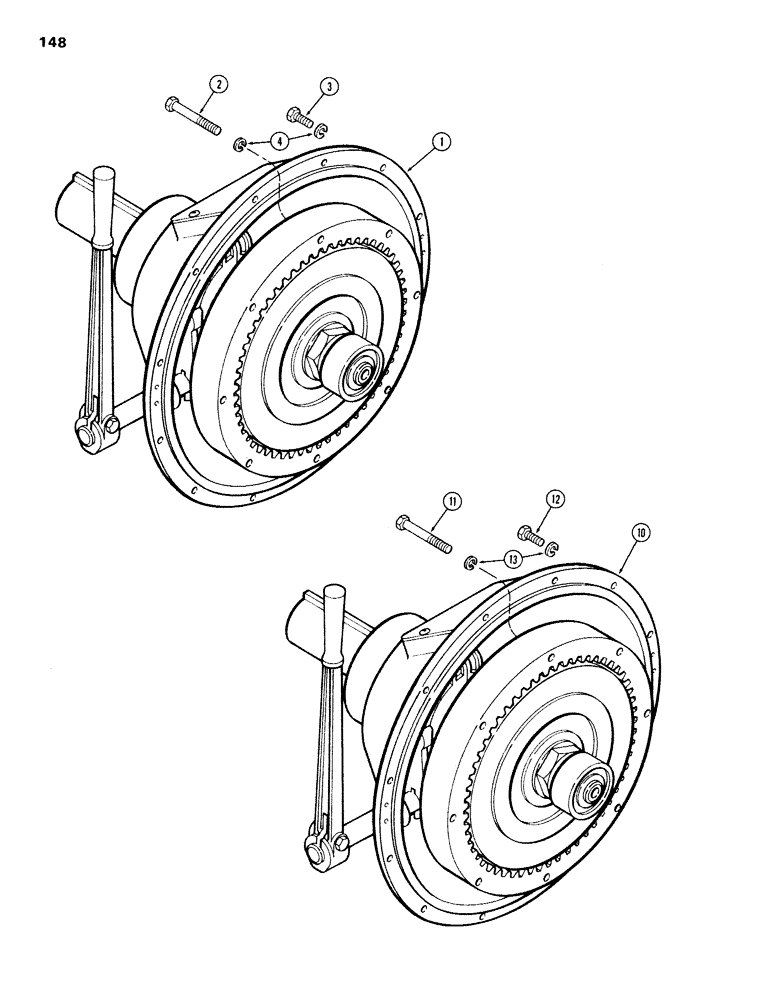

Схема запчастей Case IH 336BDT - (148) - POWER TAKE-OFF IN LINE OVER CENTER CLUTCH, 10 INCH SINGLE PLATE, C, D
11
13
12
2
10
3
1
4

Артикул

Название

Примечание

Количество

1

A39998

CLUTCH ASSY. - P.T.O. (twin disc. #C110HP3) (contact your nearest twin disc service station for parts and service) (Qty: C- 1)

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Qty: C- 12) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1/2" N.C. hex. (Qty: C- 8)

1шт.

4

92-6

LOCK WASHER,3/8"

(Qty: C- 20) 3/8"

1шт.

10

A65164

CLUTCH ASSY. - P.T.O. (twin disc #SP111HP3) (contact your nearest twin disc service station for parts and service) (Qty: D- 1)

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Qty: D- 12) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1/2" N.C. hex (Qty: D- 8)

1шт.

13

92-6

LOCK WASHER,3/8"

(Qty: D- 20) 3/8"

1шт.

Выбрано товаров: 8
