Запчасти Case IH 336BDT (146) - SHUT-DOWN CONTROL, MANUAL, FUEL TANK, E, F, G

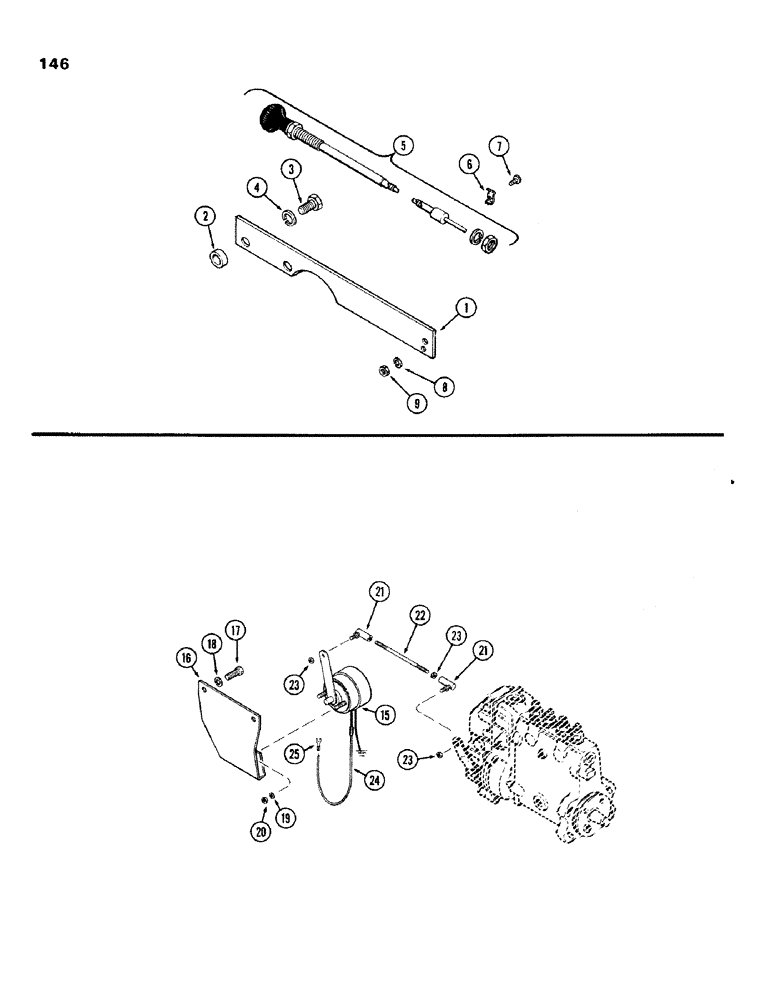

Схема запчастей Case IH 336BDT - (146) - SHUT-DOWN CONTROL, MANUAL, FUEL TANK, E, F, G
6
3
16
21
22
23
2
15
25
8
23
9
1
21
17
24
20
23
7
4
19
5
18

Артикул

Название

Примечание

Количество

1

A62095

BRACKET - cable (Qty: E- 1)

1шт.

2

A62096

SPACER

- bracket (Qty: E- 2)

1шт.

3

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Qty: E- 2) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

4

92-6

LOCK WASHER,3/8"

(Qty: E- 2) 3/8"

1шт.

5

A66211

CONTROL - fuel shut-off (Qty: E- 1)

1шт.

6

B51765

CLIP

- cable to bracket (Qty: E- 1)

1шт.

7

173-276

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

- #8 x 3/4" rd. hd. mach. (Qty: E- 1)

1шт.

8

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, (Qty: E- 1) #8

1шт.

9

129-16

NUT,#8-32

(Qty: E- 1) #8-32

1шт.

15

A76189

NO LONGER SERVICED

SOLENOID - rotary (12 volt) (Qty: F- 1)

1шт.

15

A65364

SOLENOID - rotary (24 volt) (Qty: G- 1)

1шт.

16

A64676

BRACKET - solenoid (Qty: F, G- 1)

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Qty: F, G- 2) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

(Qty: F, G- 2) 3/8"

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Qty: F, G- 2) 1/4"

1шт.

20

25-104

NUT,1/4"-20, G5

(Qty: F, G- 2) 1/4"-20, G5

1шт.

21

A62901

BALL

JOINT - fuel shut-off (Qty: F, G- 2)

1шт.

22

A64679

ROD - solenoid to injection pump (Qty: F, G- 1)

1шт.

23

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. keps (All Columns)

3шт.

24

A66212

WIRE - safety switch to solenoid, 66" (All Columns)

1шт.

25

A66213

TERMINAL - safety sw. to solenoid wire (All Columns)

1шт.

Выбрано товаров: 21
