Запчасти Case IH 336BDT (008) - TURBOCHARGER, ENGINE LESS FUEL DEVICE, 33BDT TURBOCHARGED ENGINES

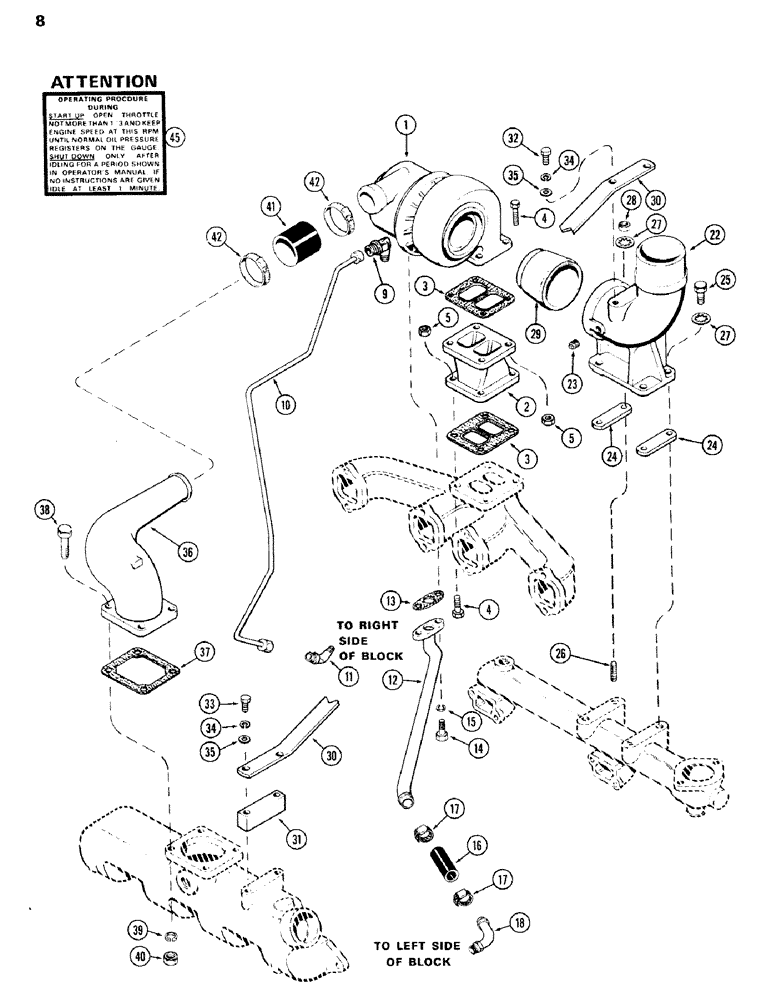

Схема запчастей Case IH 336BDT - (008) - TURBOCHARGER, ENGINE LESS FUEL DEVICE, 33BDT TURBOCHARGED ENGINES
42
3
5
32
26
45
24
25
40
17
36
2
23
38
34
4
22
17
1
34
30
30
5
41
27
10
37
28
3
27
39
42
16
24
35
9
13
11
12
14
29
18
31
33
4
15
35

Артикул

Название

Примечание

Количество

1

A42166

REMAN-TURBOCHARGER

TURBOCHARGER - original equipment

1шт.

1

A42165

CORE

TURBOCHARGER - rebuilt (See Note)

1шт.

2

A61002

ADAPTER

BASE -, Serial Range: turbocharger-manifold

1шт.

3

A58899

GASKET,0.45mm Thk

- base

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

8шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. seezpruf

8шт.

9

222-4047

ELBOW

- 3/8" tube x 1/4" P.T., 90deg.

1шт.

10

A62477

TUBE

- oil supply

1шт.

11

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

- 3/8" tube x 3/8" P.T., 45deg.

1шт.

12

A59228

TUBE

- oil drain

1шт.

13

A58892

GASKET,1.59mm Thk

- tube

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

A58893

HOSE

- drain tube

1шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

18

A59234

FITTING

- drain, Serial Range: tube-block

1шт.

22

A61941

ELBOW

- turbocharger exhaust

1шт.

23

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" P.T. sq. hd.

1шт.

24

A59237

SPACER

- elbow to water manifold

2шт.

25

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N. C. hex.

3шт.

26

A58689

STUD

- 3/8" N.C. x 1-7/8"

1шт.

27

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

28

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. seezpruf

1шт.

29

A65554

TUBE

CONNECTOR - exhaust elbow

1шт.

30

A61942

BRACE

- exhaust elbow

1шт.

31

A61945

SPACER

- brace

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

33

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

95-6

WASHER,3/8"

- 7/16 X 1 X 5/64"

4шт.

36

A58903

ELBOW UNION

ELBOW - turbocharger air intake

1шт.

37

A58910

GASKET

- elbow

1шт.

38

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

41

A58894

HOSE

- air intake

1шт.

42

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

45

321-1981

DECAL

- turbocharger procedure

1шт.

Выбрано товаров: 38
