Запчасти Case IH 336BDT (138) - INSTRUMENTATION HOOK-UP, STANDARD GAUGES, REAR PANEL OR FUEL TANK, D, E

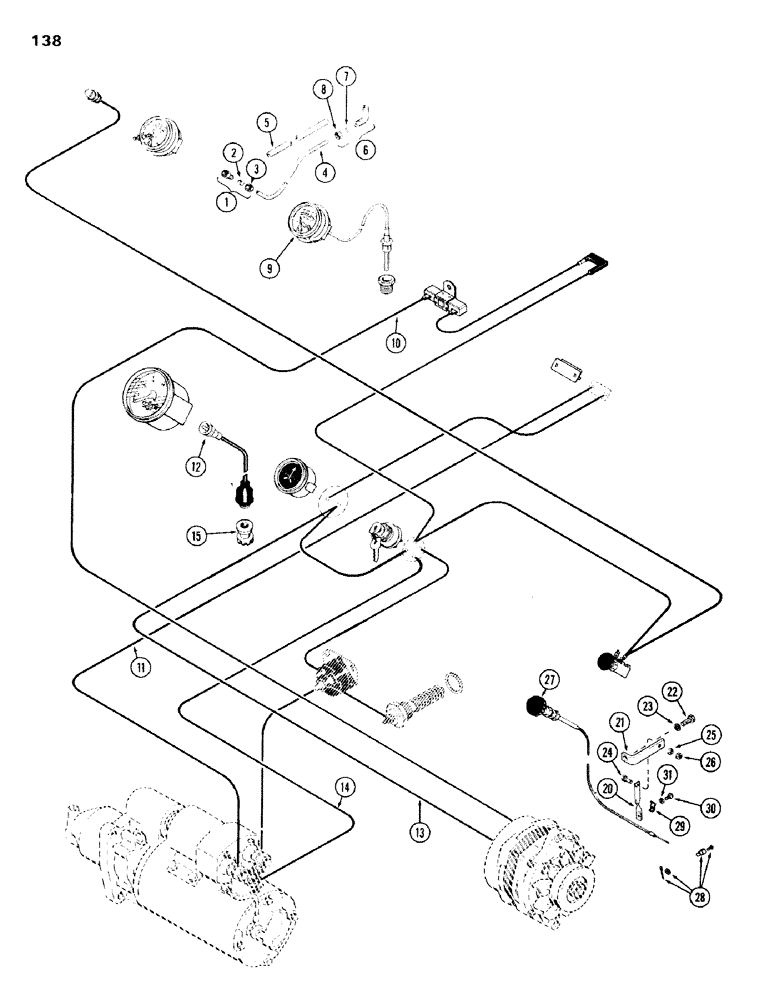

Схема запчастей Case IH 336BDT - (138) - INSTRUMENTATION HOOK-UP, STANDARD GAUGES, REAR PANEL OR FUEL TANK, D, E
21
13
6
28
14
10
7
25
9
24
20
8
30
4
27
29
1
2
15
5
11
3
31
12
26
22
23

Артикул

Название

Примечание

Количество

1

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube x 1/2" P.T. (All Columns)

1шт.

2

222-100

TUBE NUT,1/8" Tube

SLEEVE - for (All Columns) 1/8" Tube

1шт.

3

222-100

TUBE NUT,1/8" Tube

NUT - for (All Columns) 1/8" Tube

1шт.

4

A31240

TUBE - eng. oil pressure, 43" (Qty: D- 1)

1шт.

4

A11327

DECAL

TUBE - eng. oil pressure, 64" (Qty: E- 1)

1шт.

5

A39999

LOOM - pressure tube (use w/A31240) (Qty: D- 1)

1шт.

5

A20559

LOOM - pressure tube (use w/A11327) (Qty: E- 1)

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 1/8" tube x 1/8" P.T., 90deg. (All Columns)

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for (All Columsn) 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube (All Columns)

1шт.

9

A30327

GAUGE

- water temperature, 36" capillary (Qty: D- 1)

1шт.

9

A31245

ELECTRICAL GAUGE

GAUGE - water temperature, 70" capillary (Qty: E- 1)

1шт.

10

A66231

WIRE - alternator to resistor, 74" (All Columns)

1шт.

11

A66238

WIRE - circuit breaker to starter, 50" (Qty: D- 1)

1шт.

11

A66239

ELECTRICAL WIRE

WIRE - circuit breaker to starter, 62" (Qty: E- 1)

1шт.

12

A39819

CABLE

- tachometer, 52" (Qty: D- 1)

1шт.

12

A66223

CABLE PULLING GRIP

CABLE - tachometer, 62" (Qty: E- 1)

1шт.

A24523

KIT

CORE - cable replacement (Qty: E- 1)

1шт.

13

A64982

WIRE - altenator to ammeter, 73" (All Columns)

1шт.

14

A66236

WIRE - ign. sw. to starter, 52" (Qty: D- 1)

1шт.

14

A66237

WIRE - ign. sw. to starter, 62" (Qty: E- 1)

1шт.

15

A34266

DRIVE

ASSY. - tachometer (All Columns)

1шт.

20

A65287

BRACKET - throttle control cable mounting (All Columns)

1шт.

21

A65286

BRACKET - throttle control cable (All Columns)

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(All Columns) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

23

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, (All Columns) 3/8"

1шт.

24

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(All Columns) Hex, 1/4"-20 x 1", G5

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (All Columns) 1/4"

1шт.

26

25-104

NUT,1/4"-20, G5

(All Columns) 1/4"-20, G5

1шт.

27

A66228

CABLE

- throttle control, 54" (Qty: D- 1)

1шт.

27

A65909

CONTROL

CABLE - throttle control, 72" (Qty: E- 1)

1шт.

28

T32087

CONNECTOR, ELEC

CONNECTOR - throttle control (All Columns)

1шт.

29

B51765

CLIP

- throttle control cable (All Columns)

1шт.

30

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- #8 x 5/16" N.C. rd. hd. mach. (All Columns)

1шт.

31

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, (All Columns) #8

1шт.

Выбрано товаров: 35
