Запчасти Case IH 336BDT (127A) - ENCLOSURE, COMPLETE, WITH INSULATION, F

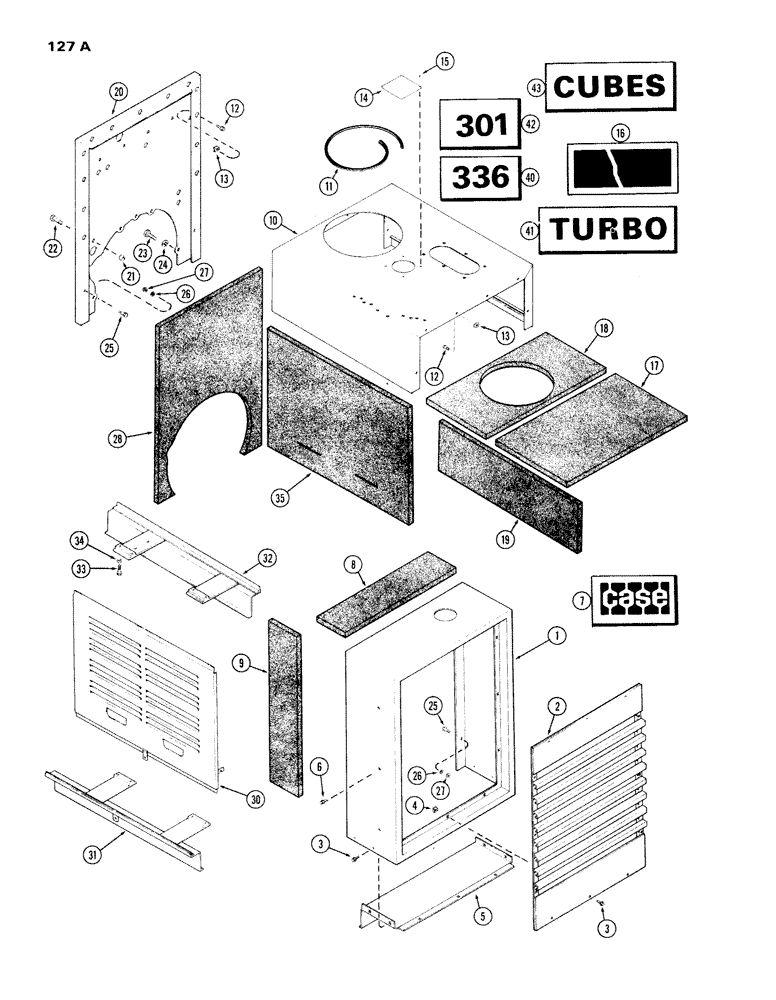

Схема запчастей Case IH 336BDT - (127A) - ENCLOSURE, COMPLETE, WITH INSULATION, F
16
3
11
10
25
32
42
15
7
40
34
31
21
2
26
8
27
24
23
19
25
26
4
5
18
6
41
20
43
27
28
33
13
13
35
3
12
17
1
22
30
12
14
9

Артикул

Название

Примечание

Количество

1

A65462

SHELL - grille

1шт.

2

A64255

GRILLE

1шт.

3

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

19шт.

4

131-115

NUT

- 1/4" N.C. Tinnerman

19шт.

5

A64254

COVER - grille shell, lower

1шт.

6

121-121

BOLT - 3/8 x 1" N.C. hex.

2шт.

6

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex.

4шт.

7

321-1308

DECAL

- Case

1шт.

8

NSS

NOT SOLD SEPARAT

INSULATION - grille shell, top (Order A44528)

1шт.

A44528

FOAM

- noise barrier, 1 x 34 x 72" (cut as req'd.)

1шт.

9

NSS

NOT SOLD SEPARAT

INSULATION grille shell, side (Order A44528)

2шт.

A44528

FOAM

- noise barrier, 1 x 34 x 72" (cut as req'd.)

1шт.

10

A65897

HOOD - engine

1шт.

11

A65887

TRIM - air cleaner hole

1шт.

12

193-510

BOLT - 5/16 x 3/4" N.C. hex., sems

12шт.

13

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman J, Ret, 5/16"-18

12шт.

14

A64266

COVER - engine lifting eye

1шт.

15

187-1000

SCREW - #10 x 1/4" rd. hd. self-tapping

4шт.

16

321-2569

DECAL - black stripe, 32-1/2" long

2шт.

17

A66454

INSULATION - hood, top-front

1шт.

18

A66455

INSULATION - hood, top-rear

1шт.

19

NSS

NOT SOLD SEPARAT

INSULATION - hood, side (Order A44528)

2шт.

A44528

FOAM

- noise barrier, 1 x 34 x 72" (cut as req'd.)

1шт.

20

A65888

PANEL - rear

1шт.

21

A64261

SPACER - rear panel

3шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

A31230

BOLT - side panel lock

4шт.

26

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

4шт.

27

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

28

NSS

NOT SOLD SEPARAT

INSULATION - rear panel (Order A44528)

1шт.

A44528

FOAM

- noise barrier, 1 x 34 x 72" (cut as req'd)

1шт.

30

A65355

PANEL

- side

2шт.

31

A64268

SUPPORT - hood side panel, R.H.

1шт.

32

A64269

SUPPORT - hood side panel, L.H.

1шт.

33

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

8шт.

34

92-6

LOCK WASHER,3/8"

8шт.

A64400

PADLOCK - side panel

2шт.

35

NSS

NOT SOLD SEPARAT

INSULATION - side panel (Order A44528)

2шт.

A44528

FOAM

- noise barrier, 1 x 34 x 72" (cut as req'd.)

1шт.

40

321-2377

DECAL - 336

1шт.

41

321-2383

DECAL - Turbo

1шт.

42

321-2376

DECAL - 301

1шт.

43

321-2382

DECAL - Cubes

1шт.

Выбрано товаров: 45
