Запчасти Case IH 336BDT (123A) - AIR CLEANER, WITHOUT PRE-CLEANER, 336T, 336D, 301D

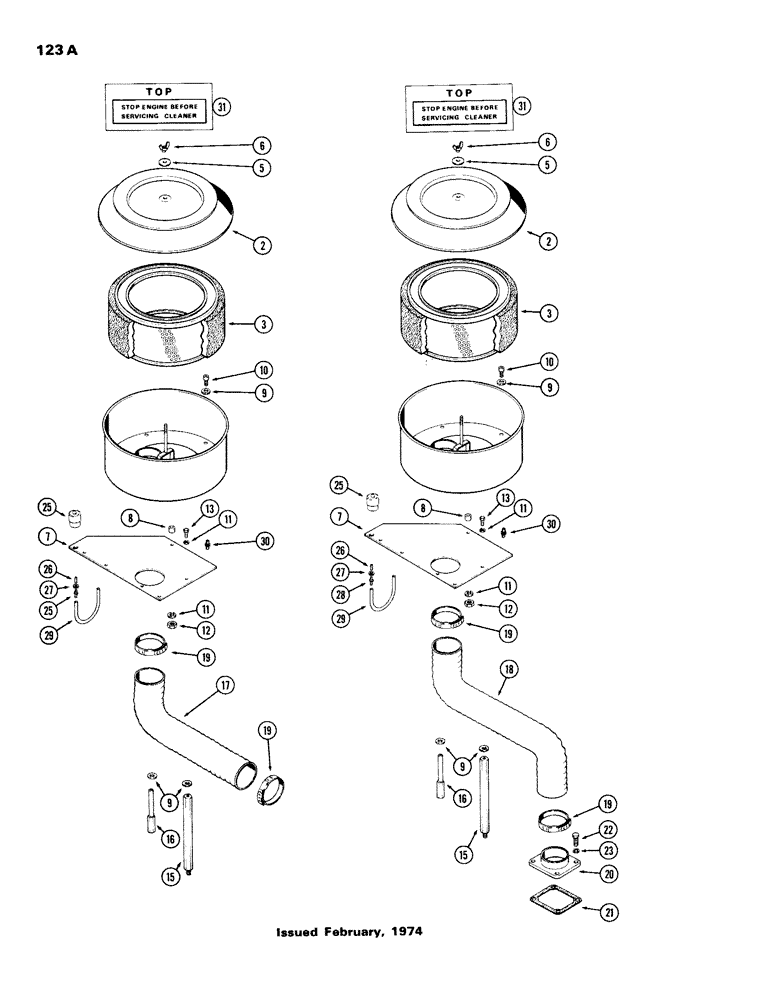

Схема запчастей Case IH 336BDT - (123A) - AIR CLEANER, WITHOUT PRE-CLEANER, 336T, 336D, 301D
31
9
9
12
22
23
8
7
3
21
13
7
27
11
6
29
16
3
6
19
2
26
27
19
11
8
25
25
5
29
17
25
9
28
2
19
15
9
19
12
11
30
18
15
13
31
10
5
30
20
11
16
10
26

Артикул

Название

Примечание

Количество

A133481

CLEANER ASSY. - air (All Columns)

1шт.

2

A44537

COVER - air cleaner (All Columns)

1шт.

3

A44538

ELEMENT

- air cleaner, w/wrapper (All Column)

1шт.

5

L10610

WASHER - wingnut (All Columns)

1шт.

6

129-505

NUT, WING

WINGNUT - 1/4" N.C. (All Columns)

1шт.

7

A136517

PLATE - air cleaner mounting (All Columns)

1шт.

8

A26547

SPACER,1/4" Pipe x 1/2"

- air cleaner to plate (All Columns)

3шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64" (All Columns)

7шт.

10

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- 5/16 x 1-1/4" N.C. hex. (All Columns)

3шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (All Columns) 5/16"

6шт.

12

9635082

NUT,5/16" - 18, Gr 5

(All Columns) 5/16"-18, G5

3шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(All Columns) Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

15

A65921

POST - air cleaner mounting (All Columns)

1шт.

16

A65920

POST - air cleaner (All Columns)

2шт.

17

A66055

DUCTING - cleaner to turbocharger, 15" (Qty: 336T- 1)

1шт.

18

A65922

DUCT

ING - air cleaner to manifold, 30" (Qty: 336D, 301D- 1)

1шт.

19

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16 to 2-3/4" (All Columns)

2шт.

20

A65924

FLANGE - intake manifold (Qty: 336D, 301D- 1)

1шт.

21

A58910

GASKET

- flange (Qty: 336D, 301D- 1)

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Qty: 336D, 301D- 4) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Qty: 336D, 301D- 4) 3/8"

1шт.

25

A59568

INDICATOR

- air restriction (All Columns)

1шт.

26

L13267

NIPPLE - 1/8" - 27 (All Columns)

1шт.

27

L13268

LOCK NUT

- 1/8" - 27 jam (All Columns)

1шт.

28

A76220

CONNECTOR - 1/8 x 1/8" (All Columns)

1шт.

29

A66776

TUBE - air restriction indicator (All Columns)

1шт.

30

D36264

FITTING

FILTER - safety (All Columns)

1шт.

31

321-1568

DECAL

- air cleaner mounting (All Columns)

1шт.

Выбрано товаров: 28
