Запчасти Case IH 336BDT (116) - FANS, PULLER, D, E, F

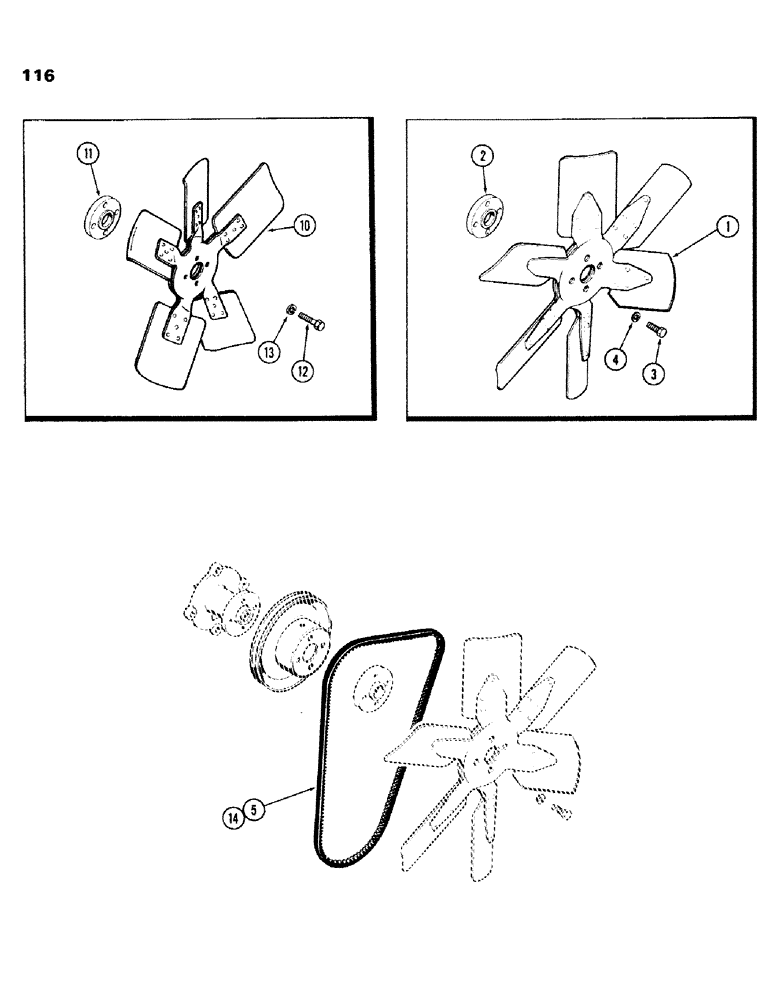

Схема запчастей Case IH 336BDT - (116) - FANS, PULLER, D, E, F
10
14
13
3
4
12
2
5
11
1

Артикул

Название

Примечание

Количество

1

A65700

FAN

- pulley, 19-1/2" (Qty: D- 1)

1шт.

2

A61268

BUSHING

SPACER - fan, 1" wide (Qty: D- 1)

1шт.

3

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(Qty: D- 4) Hex, 3/8"-16 x 2 1/4", G5

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Qty: D- 4) 3/8"

1шт.

5

A64206

V-BELT,0.69" W x 57.00" L

Fan, Drive, Quantity D- 1 0.69" W x 57.00" L

1шт.

10

A64205

FAN

- pusher, 19-1/2" (Qty: E- 1)(replaces A62405)

1шт.

REF 10 S/B A64205 4/24/97 BW

1шт.

11

A61268

BUSHING

SPACER - fan, 1" wide (Qty: E- 1)

1шт.

12

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(Qty: E- 4) Hex, 3/8"-16 x 2 1/4", G5

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Qty: E- 4) 3/8"

1шт.

14

A64206

V-BELT,0.69" W x 57.00" L

Fan, Drive, Quantity E- 1 0.69" W x 57.00" L

1шт.

A64206

V-BELT,0.69" W x 57.00" L

Fan, Drive, Quantity F- 1 0.69" W x 57.00" L

1шт.

Выбрано товаров: 12
