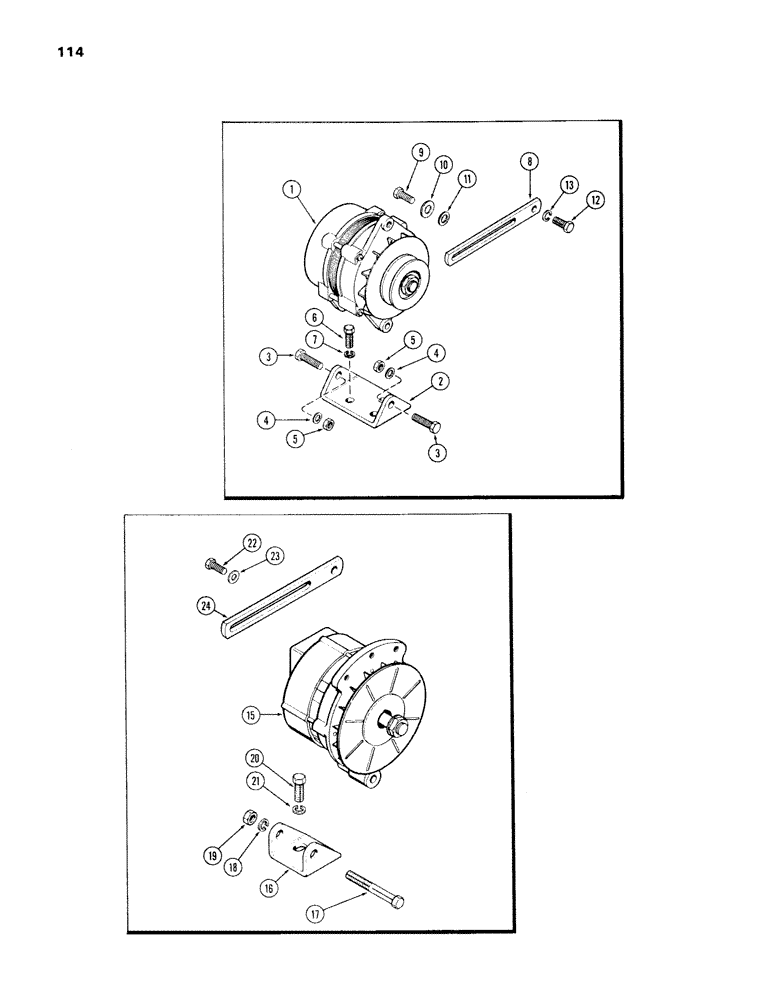

Запчасти Case IH 336BDT (114) - ALTERNATOR MOUNTING, 12 VOLT, C, D

1

A42444

ALTERNATOR

ASSY. - 12 volt-55 amp (Qty: C- 1)

1шт.

2

A61063

BRACKET

- alternator mounting (Qty: C- 1)

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Qty: C- 2) Hex, 3/8"-16 x 1 1/2", G5

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Qty: C- 2) 3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Qty: C- 2) 3/8"-16, G5

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Qty: C- 3) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Qty: C- 3) 3/8"

1шт.

8

A59167

STRAP

- alternator adjusting (Qty: C- 1)

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd (Qty: C- 1)

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (Qty: C- 1) 5/16"

1шт.

11

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16" (Qty: C- 1)

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Qty: C- 1) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Qty: C- 1) 3/8"

1шт.

15

A41360

ALTERNATOR

ASSY. - 24 volt-35 amp (Qty: D- 1)

1шт.

16

A38492

BRACKET

- alternator mounting (Qty: D- 1)

1шт.

17

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Qty: D- 1) Hex, 3/8"-16 x 3", G5

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Qty: D- 1) 3/8"

1шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Qty: D- 1) 3/8"-16, G5

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Qty: D- 2) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

21

92-6

LOCK WASHER,3/8"

(Qty: D- 2) 3/8"

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd (Qty: D- 1)

1шт.

23

195-521

WASHER,5/16", SAE

- 11/32 x 11/16x 1/16" (Qty: D- 1)

1шт.

24

A59167

STRAP

- alternator adjusting (Qty: D- 1)

1шт.
