Запчасти Case IH 336BDT (112) - ALTERNATOR AND REGULATOR, 24 VOLT-35 AMP., D

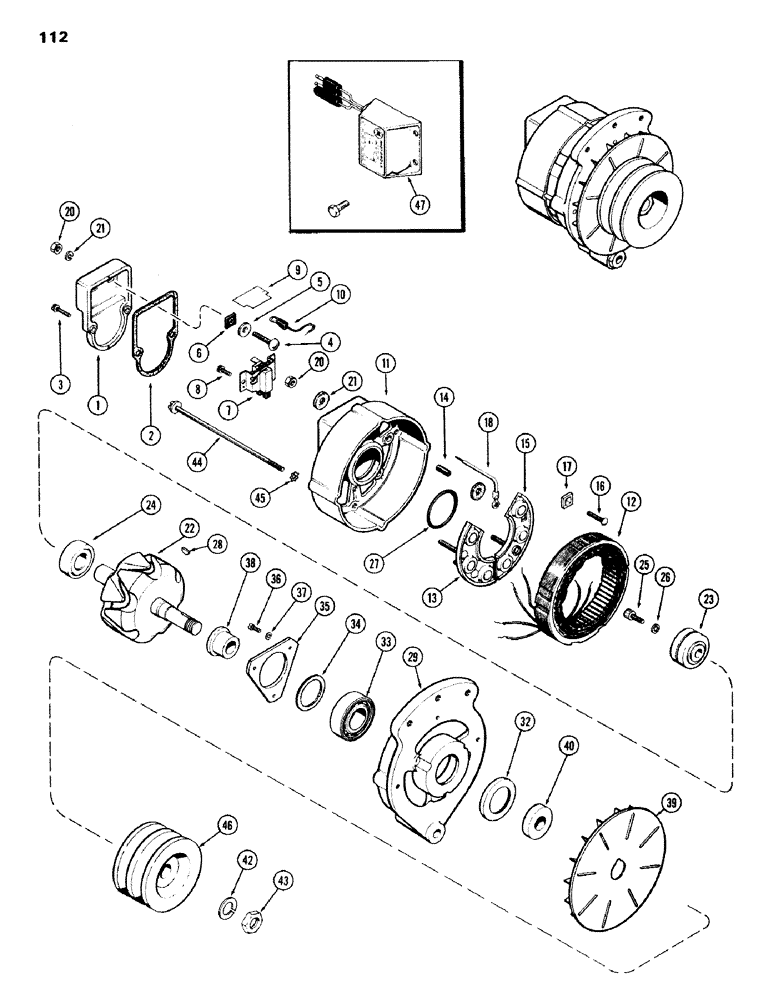

Схема запчастей Case IH 336BDT - (112) - ALTERNATOR AND REGULATOR, 24 VOLT-35 AMP., D
38
20
15
35
21
1
17
28
33
23
20
42
14
10
47
9
34
8
44
18
7
6
4
25
40
3
5
37
12
21
43
32
39
26
29
2
13
45
22
36
24
16
46
27
11

Артикул

Название

Примечание

Количество

A41360

ALTERNATOR

ALTERNATOR ASSY. - (Motorola #MH24N-901) 24 volt-35 AMP

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR - 12 Volt 35 AMP

1шт.

87746858

REMAN-ALTERNATOR

301BD 4-Cyl. Diesel Power Unit, 336BD 4-Cyl. Diesel Power Unit, 336BDT 4-Cyl. Diesel Power Unit

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufacturd 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 35 AMP Alternator

1шт.

1

A41435

COVER ASSY

COVER - rear housing

1шт.

2

A41341

GASKET

GASKET - cover

1шт.

3

187-482

SPARE PART SCREW - #8 x 3/4" self-tapping

2шт.

4

A41036

SCREW

BOLT - #10-24 rd. hd.

1шт.

5

G49045

WASHER

WASHER - 17/64 x 39/64 x 16 ga.

1шт.

6

A41041

INSULATOR

INSULATOR - brush

1шт.

7

A41048

BRUSH, COMMUTATOR

BRUSH BRUSH ASSY. - w/holder

1шт.

8

187-480

SCREW,Hex Hd, #8 x 1/2"

SCREW - #8 x 1/2" hex., self-tapping

2шт.

9

A41042

INSULATOR

INSULATOR - brush shunt lead

1шт.

10

A41046

ELECTRICAL WIRE

WIRE CABLE - internal field

2шт.

11

A41045

COVER

HOUSING - rear

1шт.

12

A42809

STATOR

STATOR ASSY. - alternator

1шт.

13

A42808

DIODE

DIODE ASSY. - negative (black)

1шт.

14

A41040

INSULATOR

INSULATOR - 13/64 x 17/64 x 68" nylon (cut as required)

2шт.

15

A41443

DIODE ELEMENT

DIODE ASSY. - positive (red)

1шт.

16

A41436

SCREW

STUD - rectifier ring

1шт.

17

A41041

INSULATOR

INSULATOR - rectifier stud

1шт.

18

A41432

CABLE PULLING GRIP

CABLE - phase tap

1шт.

20

A41060

LOCK NUT

NUT - #10-24 sems lock

7шт.

21

A41038

WASHER

WASHER - 31/64 x 3/4 x 1/16" insulating

7шт.

22

A42807

ROTOR

ROTOR ASSY. - alternator

1шт.

23

A41032

SLIP RING

RING - slip

1шт.

24

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - sealed

1шт.

25

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW - #10-32 x 5/8" sckt. hd.

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

27

A42806

RING

RETAINER - rear bearing

1шт.

28

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

29

A41437

HOUSING

HOUSING - front (includes adapter)

1шт.

32

A41047

SEAL ASSY.

SEAL - bearing, front housing

1шт.

33

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - 63/64 x 2-3/64 x 19/32"

1шт.

34

A41039

RETAINER

WASHER - 1-1/4 x 1-5/8 x 3/32"

1шт.

35

A41050

SPARE PART RETAINER - front bearing

1шт.

36

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - #8 x 3/8" N.C. pan hd.

3шт.

37

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

38

A41052

SLEEVE

SLEEVE - rotor shaft

1шт.

39

A42431

FAN

FAN - cooling

1шт.

40

A42432

SPACER

SPACER - fan

1шт.

42

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

43

A41035

NUT

NUT - 5/8" N.F. hex.

1шт.

44

A41037

BOLT

BOLT - housing

4шт.

45

193-41

WASHER,Ext-Int Tooth, #8

WASHER, LOCK, Ext-Int Tooth, #8

4шт.

46

A41361

PULLEY

PULLEY - alternator drive

1шт.

47

A75072

REGULATOR

REGULATOR ASSY. - voltage

1шт.

Выбрано товаров: 49
