Запчасти Case IH 336BDT (111A) - ALTERNATOR AND REGULATOR, 12 VOLT-55 AMP., C

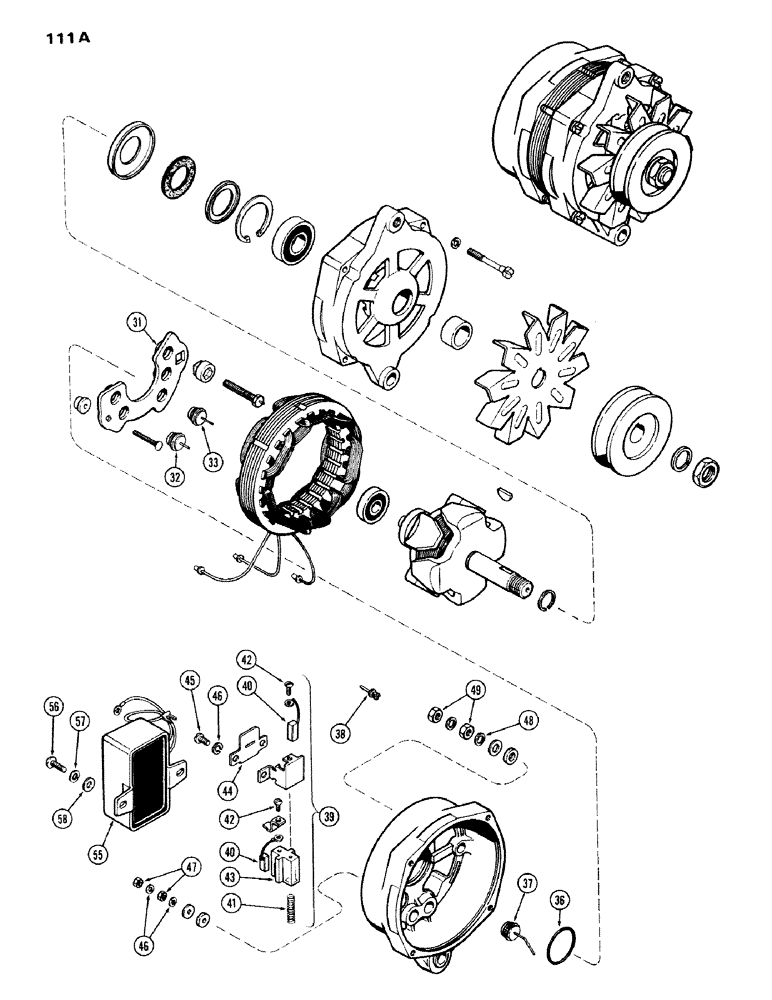

Схема запчастей Case IH 336BDT - (111A) - ALTERNATOR AND REGULATOR, 12 VOLT-55 AMP., C
36
57
43
37
38
45
41
48
46
40
56
58
55
47
42
31
32
49
40
44
39
33
46
42

Артикул

Название

Примечание

Количество

A42444

ALTERNATOR

ALTERNATOR ASSY. - (Continued from Page 111)

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR - 12 Volt 35 AMP

1шт.

87746858

REMAN-ALTERNATOR

301BD 4-Cyl. Diesel Power Unit, 336BD 4-Cyl. Diesel Power Unit, 336BDT 4-Cyl. Diesel Power Unit

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 35 AMP Alternator

1шт.

31

A42265

PLATE

HEAT SINK - diode

1шт.

32

NSS

NOT SOLD SEPARAT

DIODE - positive (Order A42265)

3шт.

33

A42261

DIODE

KIT - output diode (Set of 2)

1шт.

34

A42442

COVER

HEAD ASSY. - slip ring end

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

37

A44180

KIT

DIODE - negative (Set of 3)

1шт.

38

A42266

KIT

KIT - plugs (Set of 10)

1шт.

39

A42495

HOLDER

HOLDER ASSY. - brush

1шт.

40

A41063

BRUSH, COMMUTATOR

BRUSH KIT - armature brush (Set of 2)

1шт.

41

A41064

VALVE SPRING

SPRING KIT - brush (Set of 2)

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - mach, brush retainer

2шт.

43

NSS

NOT SOLD SEPARAT

CLIP - brush holder

1шт.

44

A41073

COVER

INSULATION - cover, brush holder

1шт.

45

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - #10-24 x 3/8" rd. hd. mach.

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

NUT - #10-24 hex., jam

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-903

NUT,3/8"-16

NUT - 1/4" N.F. hex., jam

2шт.

55

A44543

REGULATOR

REGULATOR ASSY. - voltage

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - regulator mounting

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

60

A42267

DRIVE

PULLEY - drive, alternator

1шт.

Выбрано товаров: 29
