Запчасти Case IH 336BDT (110) - ALTERNATOR AND REGULATOR, 12 VOLT-55 AMP., C

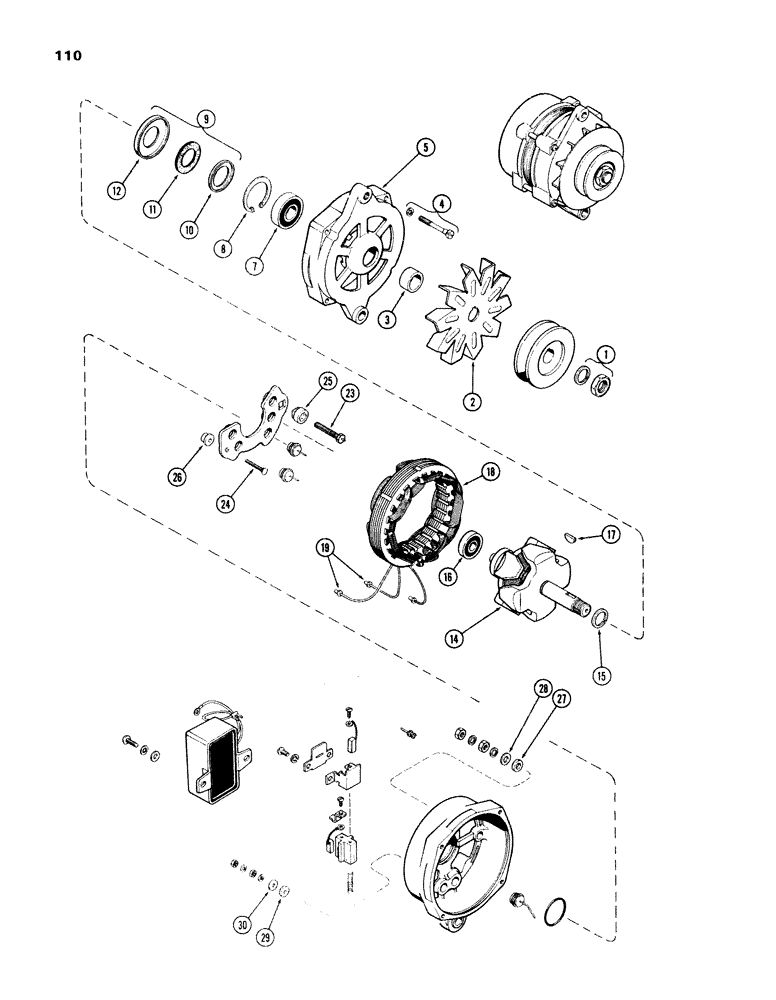

Схема запчастей Case IH 336BDT - (110) - ALTERNATOR AND REGULATOR, 12 VOLT-55 AMP., C
14
25
2
1
18
26
3
19
7
23
29
9
30
24
15
10
8
16
17
4
27
11
5
28
12

Артикул

Название

Примечание

Количество

A61062

SPARE PART ALTERNATOR ASSY. - (Prestolite #ALH-5307S) (Production Only)(Order A42444 alt., A42267 pulley & A44543 regulator)

1шт.

A42444

ALTERNATOR

ALTERNATOR ASSY. - (For Service w/o pulley or regulator) 12 volt-55 amp.

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR - 12 Volt 35 AMP

1шт.

87746858

REMAN-ALTERNATOR

301BD 4-Cyl. Diesel Power Unit, 336BD 4-Cyl. Diesel Power Unit, 336BDT 4-Cyl. Power Unit

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

A40581

KIT

KIT - nut & washer, rotor shaft

1шт.

2

A41066

FAN

FAN - ventilating

1шт.

3

A41078

BUSHING

SPACER - rotor shaft

1шт.

4

A41094

BOLT

KIT - thru bolt (Set of 4 w/washers)

1шт.

5

A42441

HEAD

HEAD ASSY. - drive end

1шт.

7

A42263

BALL

BEARING - ball

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, bearing retainer

1шт.

9

A42268

KIT

KIT - retainer

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

14

A42269

SPARE PART

ROTOR ASSY.

1шт.

15

A25626

RING

RING - snap

1шт.

16

A42270

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - ball (sealed)

1шт.

17

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT

1шт.

18

A42271

STATOR

STATOR ASSY.

1шт.

19

A41065

KIT

KIT - eyelet, wire end (Set of 6)

1шт.

A41080

KIT

KIT - terminal stud

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, batt. term.

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, aux. term.

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulating, batt. term.

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulating, aux. term.

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain, aux. term.

1шт.

Выбрано товаров: 33
