Запчасти Case IH 336BDT (108) - SOLENOID, 24 VOLT, USED WITH D42964 STARTER, C

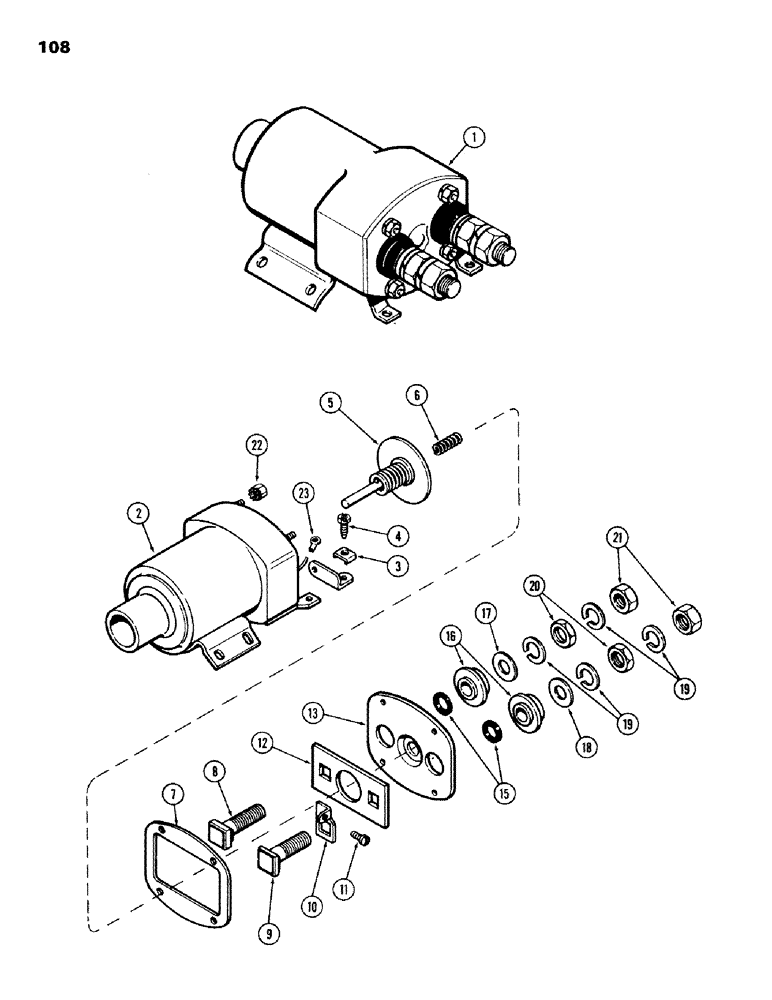

Схема запчастей Case IH 336BDT - (108) - SOLENOID, 24 VOLT, USED WITH D42964 STARTER, C
20
13
16
21
19
5
17
23
22
9
11
12
3
15
1
19
18
2
10
8
4
7
6

Артикул

Название

Примечание

Количество

1

A42376

SWITCH

SOLENOID ASSY. - (Delco #1119848) 24 volt

1шт.

2

NSS

NOT SOLD SEPARAT

CASE & COIL ASSY. - (Order A42376)

1шт.

3

A42407

CLAMP

- terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clamp

1шт.

5

D32498

CONTACT

ASSY.

1шт.

6

A42411

VALVE SPRING

SPRING - contact return

1шт.

A42412

PLATE

ASSY. - terminal studs

1шт.

7

A42260

GASKET

- terminal plate

1шт.

8

A42413

STUD

- battery terminal

1шт.

9

D32506

STUD

- starter terminal

1шт.

10

A42406

SUPPORT

- coil lead

1шт.

11

175-56

SCREW - #6-32 x 3/16" truss hd. Slotted Truss Hd, #6-32 x 3/16"

1шт.

12

D32507

RUBBER INSULATOR

INSULATOR - terminal plate

1шт.

13

A42410

PLATE

- terminal

1шт.

15

D32510

BUSHING

- rubber, term. stud

2шт.

16

A42409

BUSHING

INSULATOR - term. stud

2шт.

17

D30004

WASHER

- insulating, term. stud

2шт.

18

D30006

WASHER

- plain, term. stud

2шт.

19

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

4шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

22

D32500

NUT

- plate, sems

4шт.

23

A42408

ELECTRICAL WIRE

WIRE - ground

1шт.

Выбрано товаров: 23
