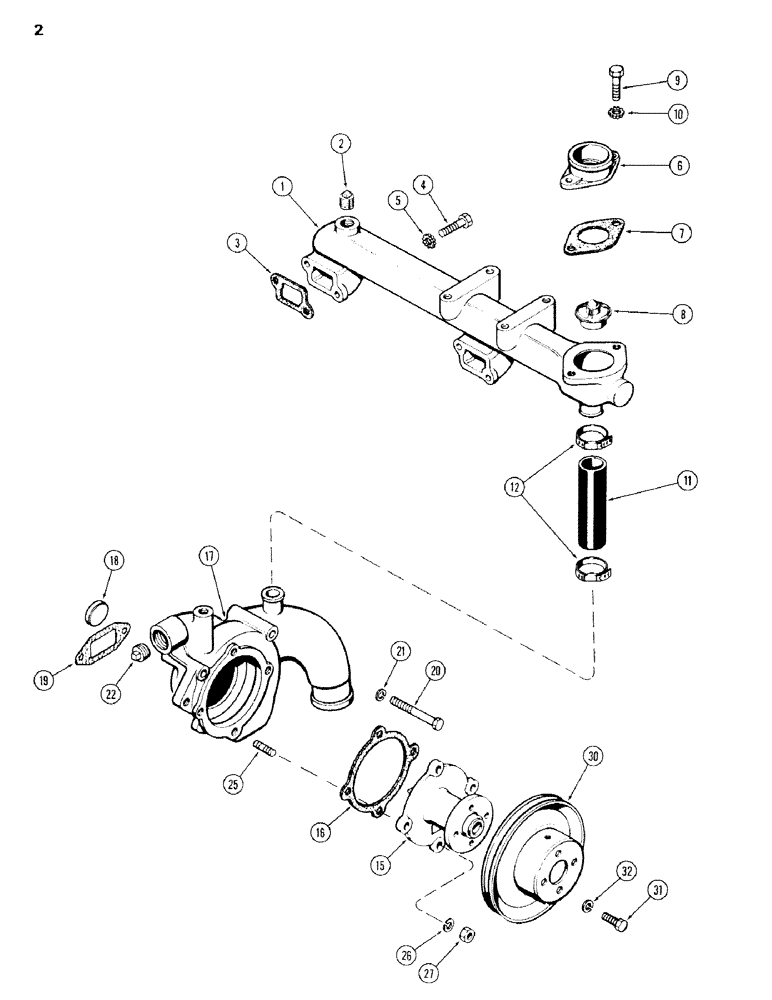

Запчасти Case IH 336BDT (002) - WATER MAINFOLD, ENGINE LESS FUEL DEVICE, 336BDT TURBOCHARGED ENGINES

1

A59211

MANIFOLD

MANIFOLD - water

1шт.

2

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" sq. hd. pipe

1шт.

3

A58637

MANIFOLD GASKET

GASKET - manifold

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" N.C. hex.

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

2шт.

5

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

6

A58736

HOUSING

HOUSING - thermostat

1шт.

7

G46907

GASKET

GASKET - thermostat housing

1шт.

8

A57641

THERMOSTAT

THERMOSTAT

1шт.

9

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

10

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

11

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

HOSE - water pump by-pass

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

15

A62976

PUMP

PUMP ASSY. - water

1шт.

15

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

15

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

16

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

17

A60630

HOUSING

BODY ASSY. - water pump

1шт.

18

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" cup

1шт.

19

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

20

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

20

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

BOLT - 3/8 x 3-3/4" N.C. hex.

2шт.

21

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

22

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" P.T. sq. hd.

2шт.

25

A62234

STUD

STUD - 3/8" N.C. x 1-5/16"

4шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

27

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - 3/8" N. C. hex., jam

4шт.

30

A58837

PULLEY

PULLEY - water pump

1шт.

31

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

4шт.

32

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.
