Запчасти Case IH 336BDT (104) - STARTING MOTOR, 24 VOLT, C

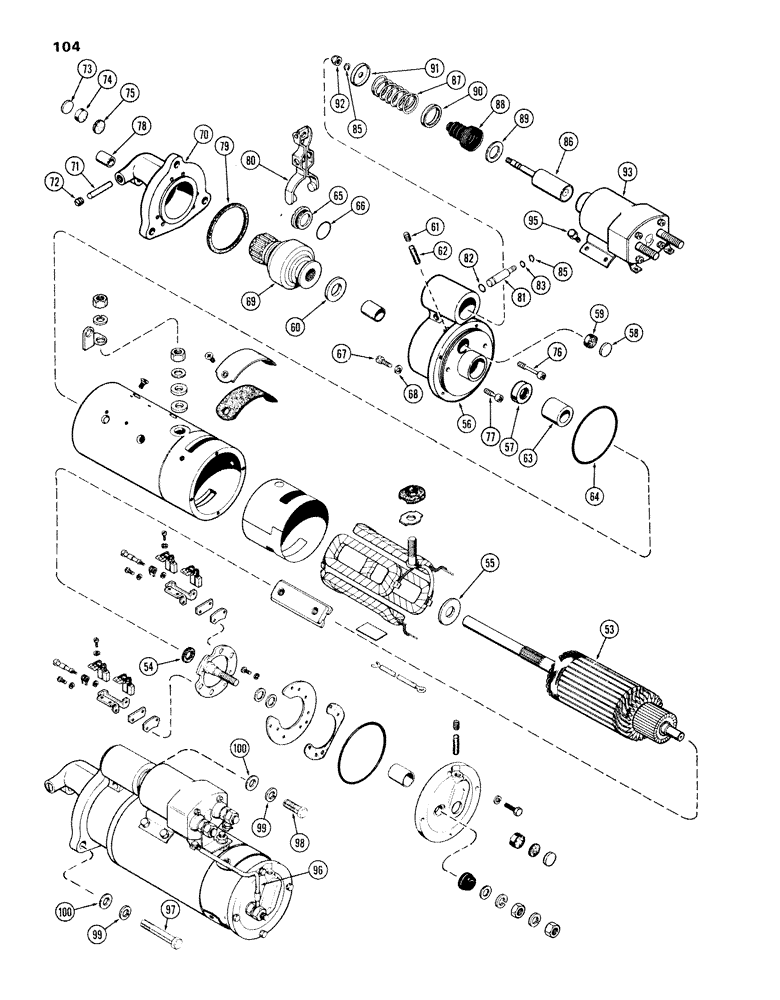

Схема запчастей Case IH 336BDT - (104) - STARTING MOTOR, 24 VOLT, C
97
77
55
82
68
100
63
99
98
53
86
79
73
56
96
62
99
88
78
58
74
59
66
80
85
87
71
76
83
95
60
75
90
65
70
91
61
69
57
67
93
64
92
89
72
85
54
100
81

Артикул

Название

Примечание

Количество

D42964

X

STARTER ASSY. - Continued from Pg. 103B

1шт.

53

A41458

ARMATURE

- starter

1шт.

54

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- spacer, commutator end

1шт.

55

A40892

WASHER

- spacer, drive housing

1шт.

56

R21579

HOUSING

ASSY. - shift lever

1шт.

57

A21582

RING, SET

SEAL - oil, lever housing

1шт.

58

41-57

PLUG,Exp, 1 1/32"

- expansion

1шт.

59

A41923

PLUG

- housing

1шт.

60

R15145

DISC

WASHER - brake

1шт.

61

221-1041

PLUG

- 1/8" P.T. sltd. hdless.

1шт.

62

R15023

WICK

- oil

1шт.

63

R21580

BUSHING

- lever housing

1шт.

64

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - shift lever housing

1шт.

65

R21587

PLUG

- shift lever housing

1шт.

66

A41973

GASKET

- plug

1шт.

67

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing Hex, 1/4"-28 x 1", G5

5шт.

68

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

69

A42397

DRIVE

ASSY. - starter

1шт.

70

A40283

HOUSING

ASSY. - drive end

4шт.

71

R15023

WICK

- oil

1шт.

72

221-1041

PLUG

- 1/8" P.T. sltd. hdless.

1шт.

73

41-57

PLUG,Exp, 1 1/32"

- expansion

1шт.

74

A41973

GASKET

- plug

1шт.

75

A41923

PLUG

- shaft

1шт.

76

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive housing (long)

5шт.

77

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing (short)

1шт.

78

A40893

BUSHING

- 5/8 x 3/4 x 25/32"

1шт.

79

R21562

GASKET

- drive housing

1шт.

80

D32547

LEVER

ASSY. - drive shift

1шт.

81

A42199

PIN

STUD - shift lever

1шт.

82

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - stud (large)

1шт.

83

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - stud (small)

1шт.

85

A40422

RING

- snap, stud and plunger

2шт.

86

A42309

PLUNGER

- solenoid switch

1шт.

87

A41242

SPRING

- plunger

1шт.

88

A42308

BOOT

- plunger

1шт.

89

A41922

WASHER

- boot seat

1шт.

90

R21572

RETAINER

- plunger spring (inner)

1шт.

91

R21571

RETAINER

- plunger spring (outer)

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT - 5/16" N.F. hex.

1шт.

93

A42376

SWITCH

SOLENOID ASSY. - (See Page 109)

1шт.

95

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting

4шт.

96

A41978

ELECTRICAL WIRE

WIRE -, Serial Range: terminal-solenoid

1шт.

97

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW - 1/2 x 3" N.C. hex.

1шт.

98

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

2шт.

99

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

100

L30674

WASHER

- 17/32 x 1 x 1/8"

3шт.

Выбрано товаров: 47
