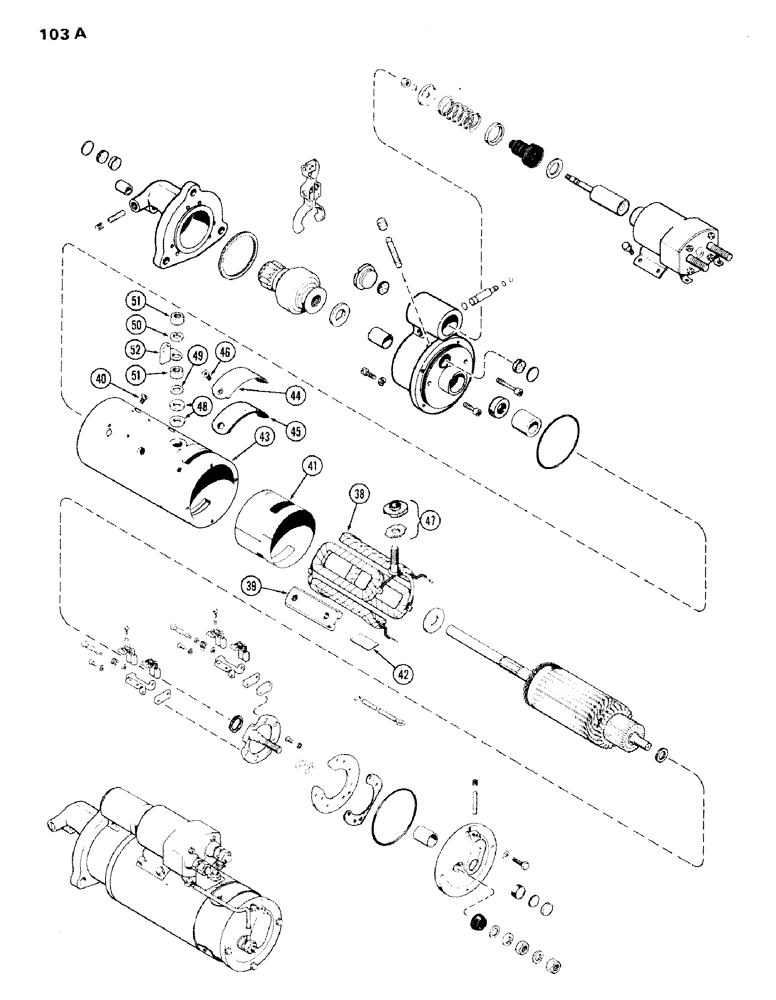

Запчасти Case IH 336BDT (103A) - STARTING MOTOR, 24 VOLT, C

D42964

X

STARTER ASSY. - Continued from Pg. 103

1шт.

38

A41590

COIL

ASSY. - field

1шт.

39

R15115

SHOE

- starter pole

4шт.

40

74-610

SCREW,3/8" - 24 x 5/8"

- 3/8 x 5/8" N.F. flat hd.

8шт.

41

A41920

INSULATOR

- field coil

1шт.

42

A41977

RUBBER INSULATOR

INSULATION - wire junction

2шт.

43

NSS

NOT SOLD SEPARAT

FRAME - field

1шт.

44

A41957

PLATE

- cover, brush

2шт.

45

A41849

GASKET

- cover

1шт.

46

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8-24 x 1/2" rd. hd.

4шт.

47

A41925

BUSHING

- inner, term. insulating

1шт.

48

D30005

INSULATOR

WASHER - outer, term. insulating

1шт.

49

D30006

WASHER

- terminal stud

1шт.

50

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

51

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

52

A40894

CONNECTOR, ELEC

CONNECTOR -, Serial Range: terminal-switch

1шт.
