Запчасти Case IH 336BDT (102) - STARTING MOTOR, 24 VOLT, C

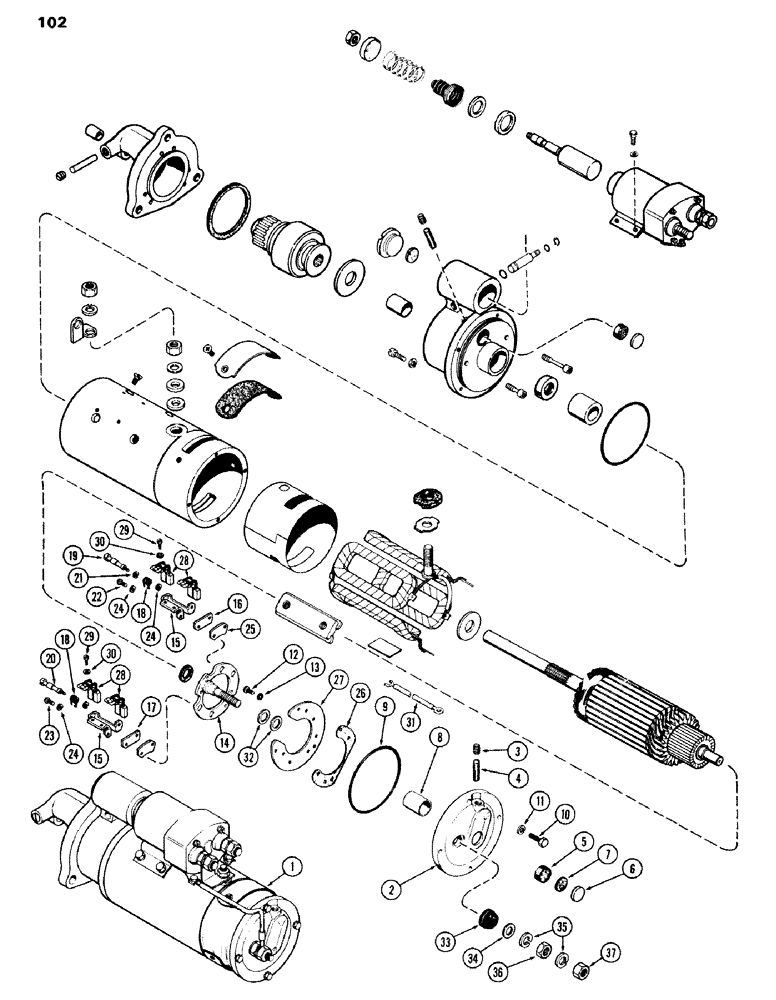

Схема запчастей Case IH 336BDT - (102) - STARTING MOTOR, 24 VOLT, C
2
15
18
31
21
36
24
30
23
24
18
24
35
2
22
4
8
29
6
7
32
17
27
5
13
11
37
10
28
15
9
16
25
28
12
14
3
33
1
20
30
34
29
19

Артикул

Название

Примечание

Количество

1

D42964

X

STARTER ASSY. - (Delco #1113949) 24 volt

1шт.

2

A42314

GASKET

FRAME ASSY. - commutator end

1шт.

3

221-1041

PLUG

- 1/8" P.T. sltd. hdless.

1шт.

4

R15023

WICK

- oil

1шт.

5

A41923

PLUG

- felt

1шт.

6

41-57

PLUG,Exp, 1 1/32"

- expansion

1шт.

7

A41973

GASKET

- plug

1шт.

8

A25336

BUSHING

- armature shaft

1шт.

9

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - commutator frame

1шт.

10

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

12

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8-24 x 1/2" rd. hd.

3шт.

13

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

A41461

PLATE

ASSY. - brush (w/o brushes)

1шт.

14

A41921

PLATE

- studded, brush mtg.

1шт.

15

A42425

NOZZLE HOLDER

HOLDER - brush

4шт.

16

A41454

SPACER - insulated, holder

2шт.

17

A41455

SPACER

- grounded, holder

2шт.

18

A25393

SPRING

- starter brush

8шт.

19

A41915

SCREW - insulated brush holder

2шт.

20

A41972

SCREW,#10 - 32 x 1.36, 0.4"

- grounded brush holder

2шт.

21

A41916

WASHER

- insulating, brush screw

4шт.

22

A41974

SCREW,#10 - 32 x 5/8"

- insulated brush holder

2шт.

23

A41959

SCREW,#10 - 32 x 3/8"

- grounded brush holder

2шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

25

A40674

NOZZLE HOLDER

HOLDER - insulated

1шт.

26

A41914

SUPPORT

PLATE - connector

1шт.

27

A41457

INSULATOR

- brush plate

1шт.

28

A41456

BRUSH, COMMUTATOR

BRUSH - starter

8шт.

29

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- #8-32 x 5/16" rd. hd.

8шт.

30

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

8шт.

31

A41978

ELECTRICAL WIRE

WIRE -, Serial Range: brush-field

1шт.

32

A41971

WASHER

- terminal stud

2шт.

33

A41918

INSULATOR

- terminal stud

1шт.

34

D30006

WASHER

- terminal stud, 1/2 x 7/8"

1шт.

35

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

36

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

37

D30009

NUT

- 1/2" N.C. hex.

1шт.

Выбрано товаров: 38
